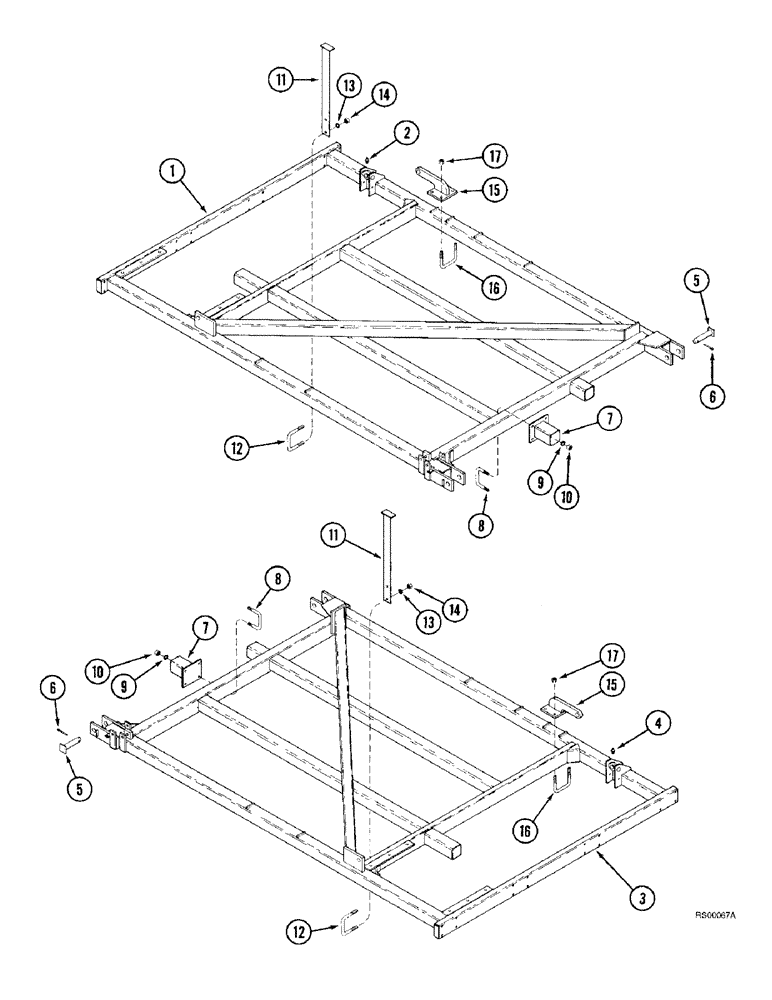

Запчасти Case IH 5800 (9-20) - 12 FOOT WING FRAME, PRIMARY WING VERTICAL FOLD 37 FOOT (09) - CHASSIS/ATTACHMENTS

1

136252A3

FUNNEL

FRAME - wing, 12 foot, left hand

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

3

136253A3

FUNNEL

FRAME - wing, 12 foot, right hand

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

5

811965C2

PIN

- primary wing frame to main frame

4шт.

6

432-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

4шт.

7

142321A1

EXTENSION

- stub, clamp on

2шт.

8

817740C1

U-BOLT

- 5/8 inch NC

4шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

425-1010

NUT,5/8"-11, G5

8шт.

11

183056A2

SUPPORT

- secondary wing (49 through 53 foot wide only)

2шт.

12

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

2шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

425-1010

NUT,5/8"-11, G5

4шт.

15

143008A1

ANCHOR

- cylinder (49 through 53 foot wide only)

2шт.

16

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

4шт.

17

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

8шт.
