(9-18) - 9 FOOT WING FRAME, PRIMARY WING VERTICAL FOLD 31 FOOT

Запчасти Case IH 5800 (9-18) - 9 FOOT WING FRAME, PRIMARY WING VERTICAL FOLD 31 FOOT (09) - CHASSIS/ATTACHMENTS

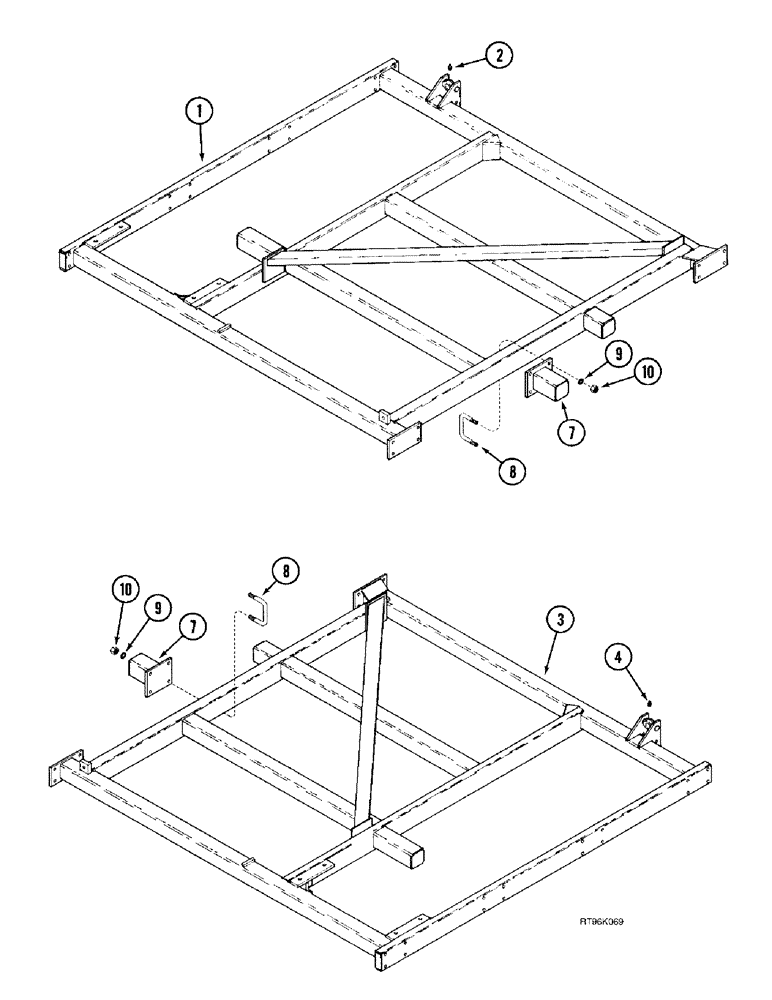

Схема запчастей Case IH 5800 - (9-18) - 9 FOOT WING FRAME, PRIMARY WING VERTICAL FOLD 31 FOOT (09) - CHASSIS/ATTACHMENTS
9
2
8
10
7
9
3
10
4
8
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

231698A3

FRAME

- wing, 9 foot, left hand

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

3

231699A3

FRAME

- wing, 9 foot, right hand

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

7

142321A1

EXTENSION

- stub, clamp on

2шт.

8

817740C1

U-BOLT

- 5/8 inch NC

4шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

425-1010

NUT,5/8"-11, G5

8шт.
