(9-16) - 6 FOOT WING FRAME, PRIMARY WING FLAT FOLD 25 FOOT AND 27

Запчасти Case IH 5800 (9-16) - 6 FOOT WING FRAME, PRIMARY WING FLAT FOLD 25 FOOT AND 27 (09) - CHASSIS/ATTACHMENTS

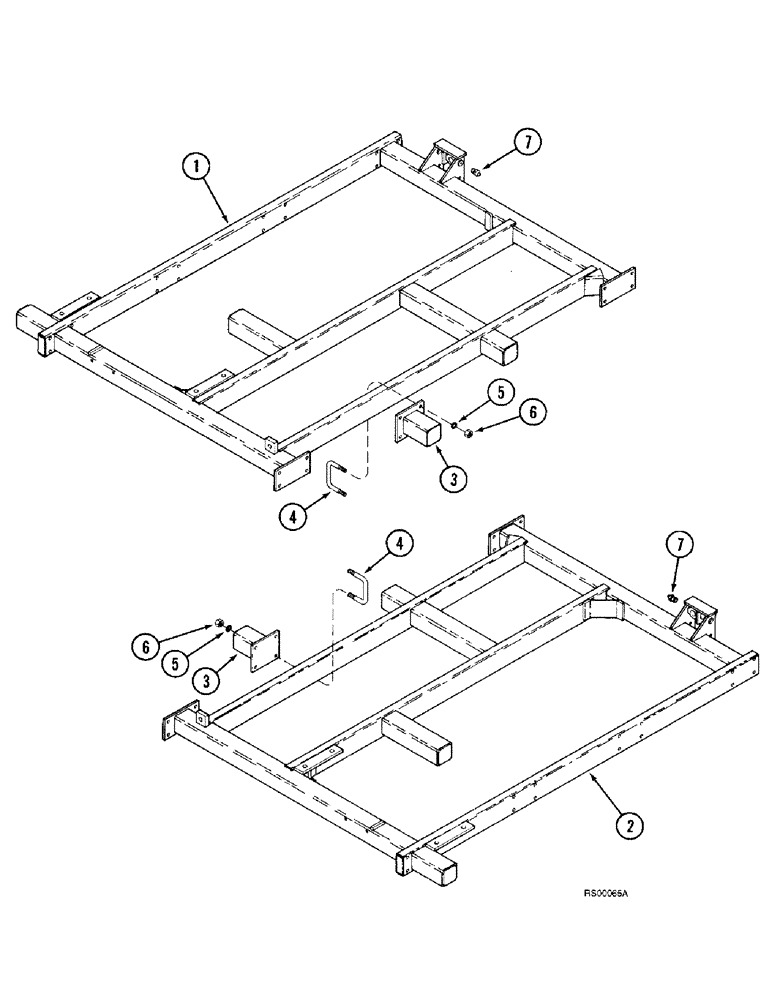

Схема запчастей Case IH 5800 - (9-16) - 6 FOOT WING FRAME, PRIMARY WING FLAT FOLD 25 FOOT AND 27 (09) - CHASSIS/ATTACHMENTS
7
4
2
4
6
5
1
7
3
5
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

138993A2

FUNNEL

FRAME - wing, 6 foot, left- hand

1шт.

2

138994A2

FUNNEL

FRAME - wing, 6 foot, right- hand

1шт.

3

142321A1

EXTENSION

- stub, clamp on

2шт.

4

811627C2

U-BOLT

- 5/8 inch NC, 2 x 5 inch

4шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

425-1010

NUT,5/8"-11, G5

8шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

Выбрано товаров: 7
