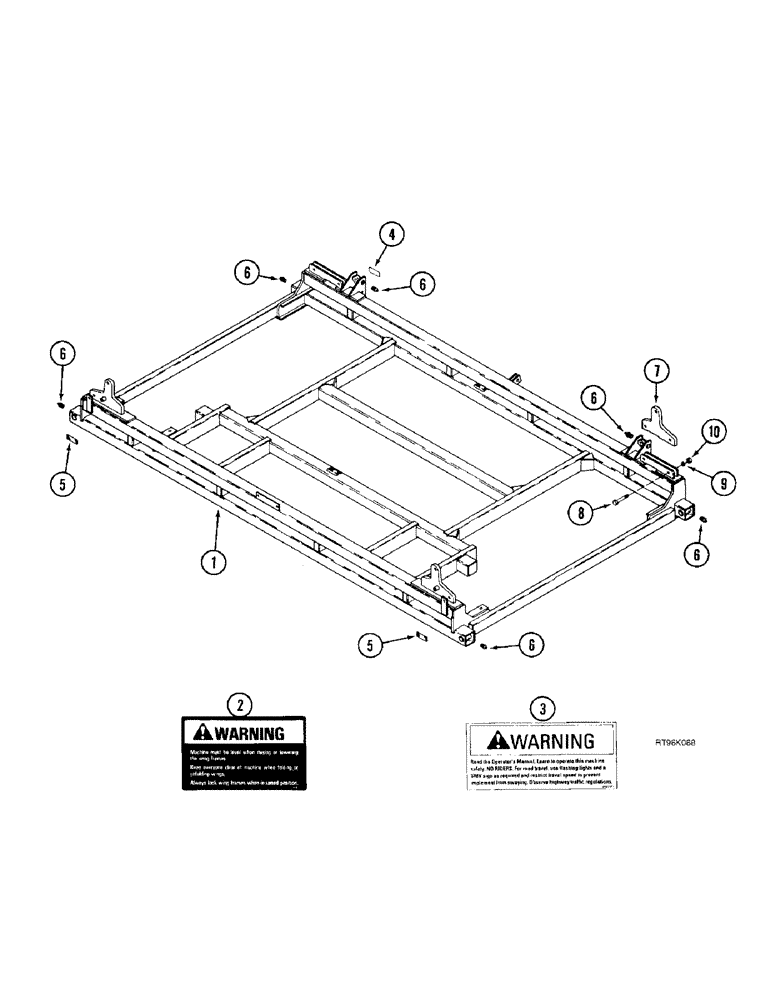

Запчасти Case IH 5800 (9-06) - MAIN FRAME, VERTICAL FOLD AND DOUBLE FOLD, 29 FOOT THROUGH (09) - CHASSIS/ATTACHMENTS

1

133831A2

FUNNEL

FRAME ASSEMBLY - main

1шт.

2

810170C2

PRODUCT GRAPHIC

DECAL - Warning, machine must be level

2шт.

3

220321A1

WARNING DECAL

DECAL - Warning, read the operator\qs manual

1шт.

4

1284365C2

REFLECTOR

- amber

1шт.

5

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

6

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

6шт.

7

141631A2

ANCHOR

- cylinder (49 through 53 foot wide only)

2шт.

Item#7 141631a2-- has been changed at concord to a triangular shaped plate-- #303596a1- this is being shipped with the new machines as well as the 141631a2-- customers are confused - tell them to install the new 303596a1 plates and throw the (t) shaped ones away. ecn a981502 jp tsg

1шт.

8

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

9

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

10

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.
