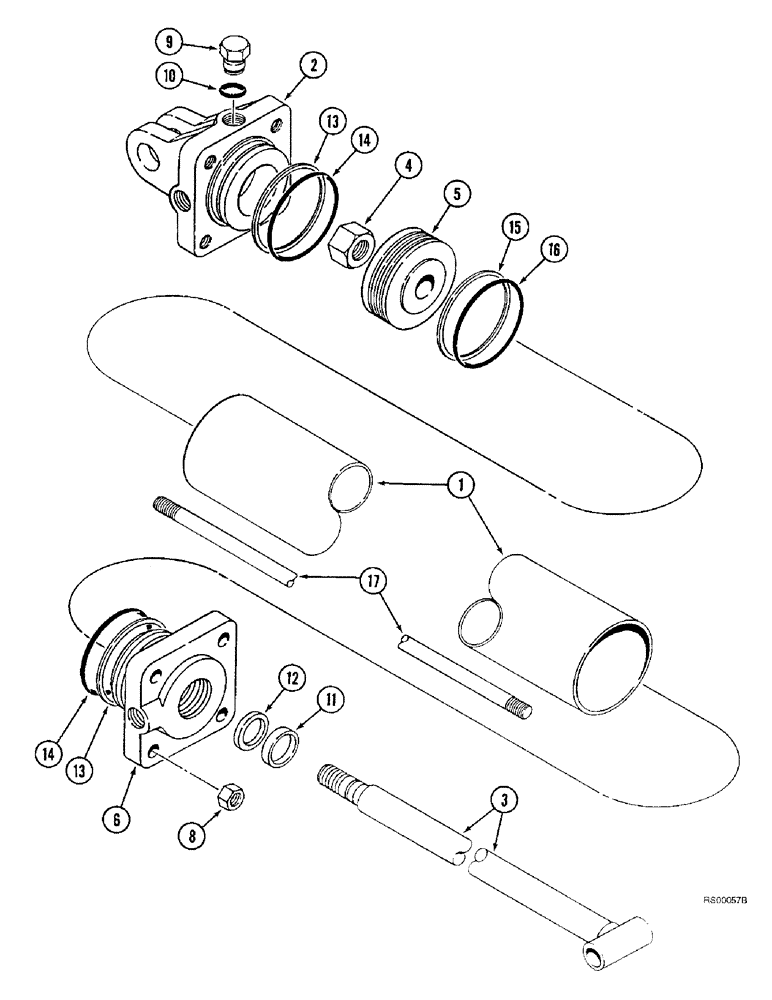

Запчасти Case IH 5800 (8-36) - CYLINDER ASSEMBLY, 224795C92 (08) - HYDRAULICS

224795C92

CYLINDER

ASSEMBLY - 102 (4) ID x 864 mm (34 inch) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1272919C1

CYLINDER HEAD

CAP - end, cylinder

1шт.

3

1285955C1

ROD

- piston

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

5

92521C1

PISTON

- cylinder

1шт.

6

1285881C1

HEAD

GLAND - cylinder

1шт.

7

224798C1

BOLT,5/8" - 11 x 39.2"

- cylinder tie

4шт.

8

25-1010

NUT,5/8"-11, G5

4шт.

9

214389

PLUG,3/4" - 16 ORB

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal kit. P/N 1272883C3

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit. P/N 1272883C3

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit. P/N 1272883C3

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, end cap and gland O-ring

2шт.

Part of seal kit. P/N 1272883C3

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

Part of seal kit. P/N 1272883C3

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal kit. P/N 1272883C3

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal kit. P/N 1272883C3

1шт.

1272883C3

SEAL KIT

KIT - seal, Includes: Ref. 10 - 16

1шт.
