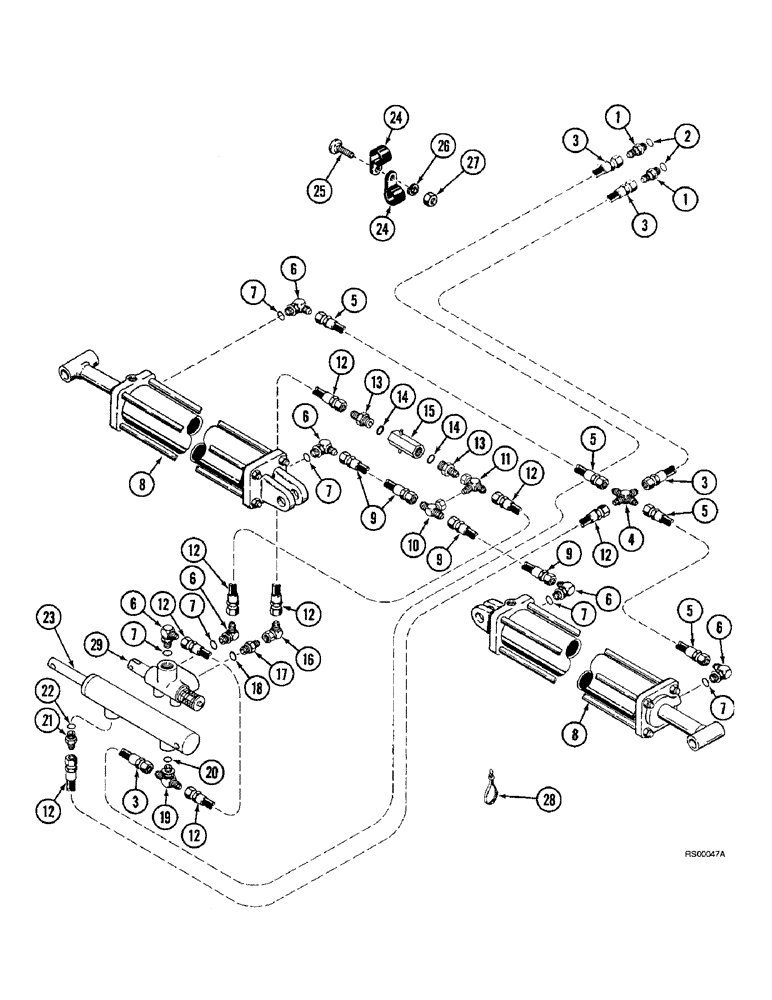

Запчасти Case IH 5800 (8-14) - WING LIFT HYDRAULIC CIRCUIT, VERTICAL FOLD, 29 FOOT THROUGH (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

191289A1

HYDRAULIC HOSE

HOSE - 7495 mm (295 inch) long

2шт.

4

218-653

4 WAY CONNECTION,9/16"-18, 37 Degree

CROSS - hydraulic, 9/16-18 flare

1шт.

5

1264170C1

HYDRAULIC HOSE,6.40 mm ID x 3175.00 mm, SAE 100R1

HOSE - 3175 mm (125 inch) long

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

6шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

1285753C94

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 864 mm (34 inch) stroke (29 foot through 35 foot wide)(See Page 8-35)

2шт.

8

224795C92

CYLINDER

ASSEMBLY - 102 (4) ID x 864 mm (34 inch) stroke (37 foot through 41 foot wide)(See Page 8-37)

2шт.

9

139517C1

HYDRAULIC HOSE

HOSE - 2032 mm (80 inch) long

2шт.

10

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

- 9/16-18 inch swivel x flare x flare

1шт.

11

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

1шт.

12

97638C1

HYDRAULIC HOSE,6.35 mm ID x 482.60 mm, SAE 100 R1

4шт.

13

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 23

1шт.

15

1279338C1

VALVE

- check

1шт.

16

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

17

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch adj O-ring branch x flare x flare

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

23

1286364C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 38 (1-1/2) ID x 102 mm (4 inch) stroke (See Page 8-39)

1шт.

24

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

- P-type, 7/16 inch ID

1шт.

24

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

1шт.

25

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

26

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.

28

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

1шт.

29

187904A1

VALVE

- transport lockout

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
