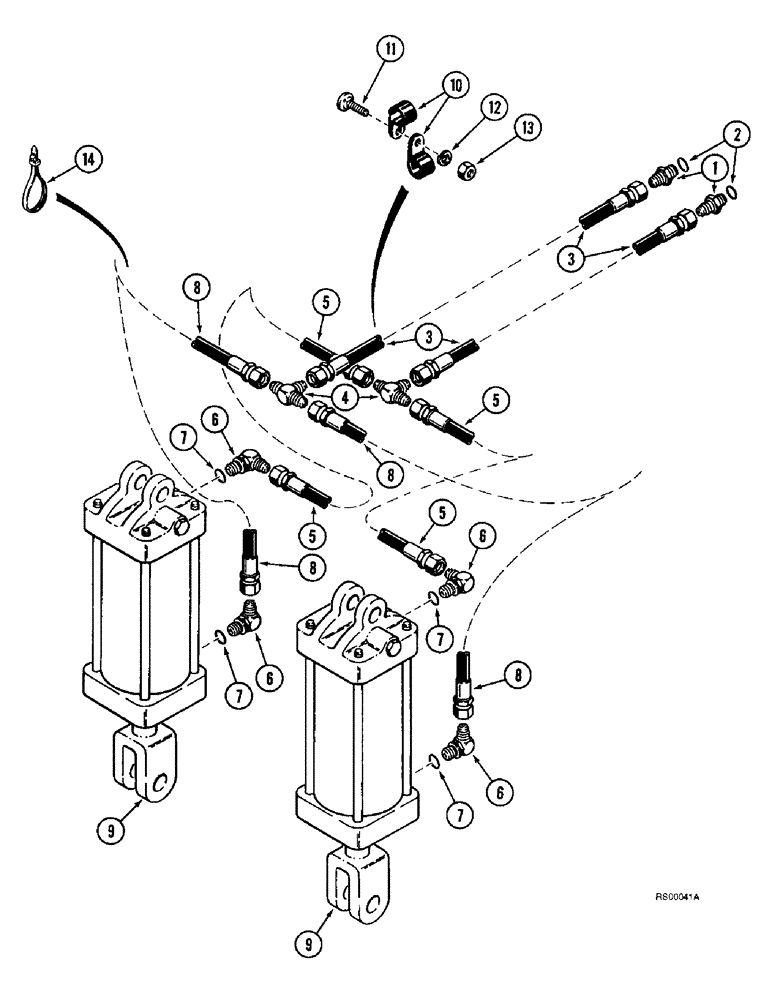

Запчасти Case IH 5800 (8-02) - DEPTH CONTROL HYDRAULIC CIRCUIT, FLAT FOLD, 19 FOOT THROUGH (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

133933C2

HYDRAULIC HOSE

HOSE - 6604 mm (260 inch) long

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

2шт.

5

810205C1

HYDRAULIC HOSE,6.35mm ID x 1820mm L, SAE 100R17

HOSE - 1780 mm (70 inch) long

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

4шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

195504C2

HYDRAULIC HOSE

HOSE - 2030 mm (80 inch) long

2шт.

9

1282324C93

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 203 mm (8 inch) stroke (See Page 8-25)

2шт.

84255910R

REMAN-HYD CYLINDER

5800, Reman For New P/N 1282324C93

2шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

10

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

- P-type, 7/16 inch ID

1шт.

10

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

1шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

12

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

1шт.
