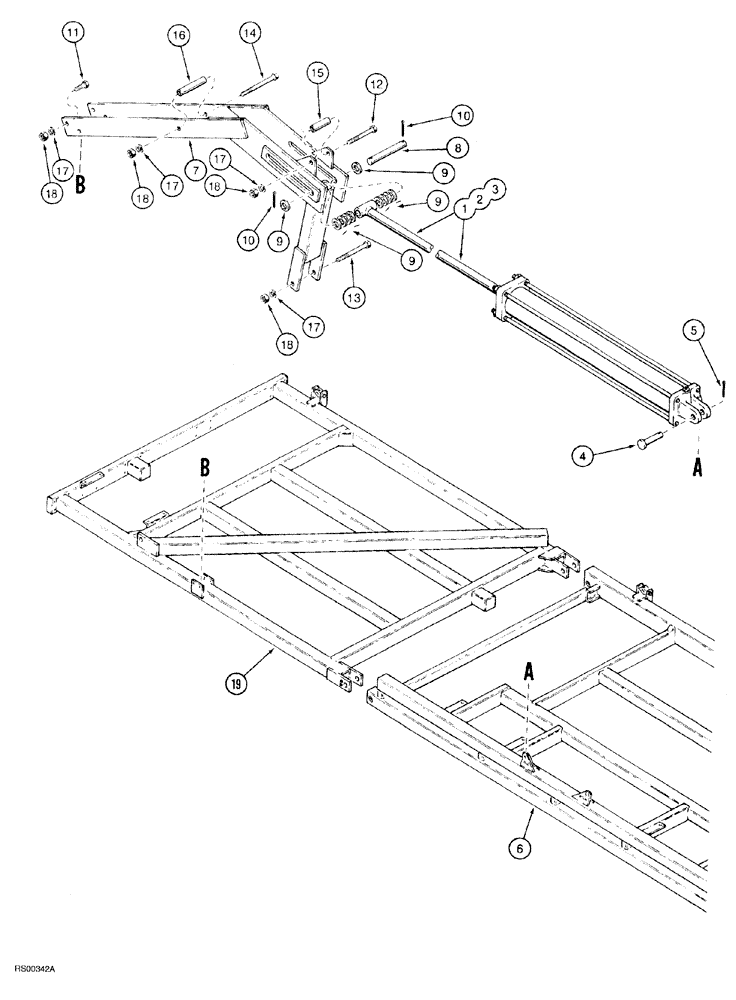

Запчасти Case IH 5700 (9-112) - WING LIFT, LEVEL LIFT MODELS, VERTICAL AND DOUBLE FOLD PRIMARY WING, 35 FOOT THROUGH 53 FOOT WIDE (18) - MISCELLANEOUS

1

224795C92

CYLINDER

ASSEMBLY, 4 (102) ID x 34 inch (864 mm) stroke, 35 foot through 41 foot wide (See Fig. 8-66)

2шт.

2

810662C91

CYLINDER

ASSEMBLY, 4 (102) ID x 34 inch (864 mm) stroke, 35 foot through 41 foot wide (See Fig. 8-68)

2шт.

3

1954089C1

CYLINDER

ASSEMBLY, 4-1/2 (114) ID x 34 inch (864 mm) stroke, 47 foot through 53 foot wide (See Fig. 8-70)

2шт.

4

810751C1

PIN

1 x 3-1/2 inch long

2шт.

5

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

6

REF

INSTRUCTION

FRAME ASSEMBLY, main

1шт.

7

813678C1

SUPPORT

SPARE PART HINGE primary wing lift

2шт.

8

811962C1

PIN

pivot

2шт.

9

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat

20шт.

10

432-1224

COTTER PIN,3/16" x 1-1/2"

4шт.

11

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

8шт.

12

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

13

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex, 5/8 NC x 6 inch

2шт.

14

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

BOLT hex, 5/8 NC x 7 inch

2шт.

15

27803R1

SPACER,7/8" Tube x 3 1/4"

3-1/4 inch (83 mm) long

2шт.

16

517668R1

SPACER,3/4" Pipe x 5 1/8"

3/4 x 5-1/8 inch

2шт.

17

492-11062

BEARING WASHER,5/8"

14шт.

18

425-1010

NUT,5/8"-11, G5

14шт.

19

REF

INSTRUCTION

FRAME primary wing, left hand

1шт.
