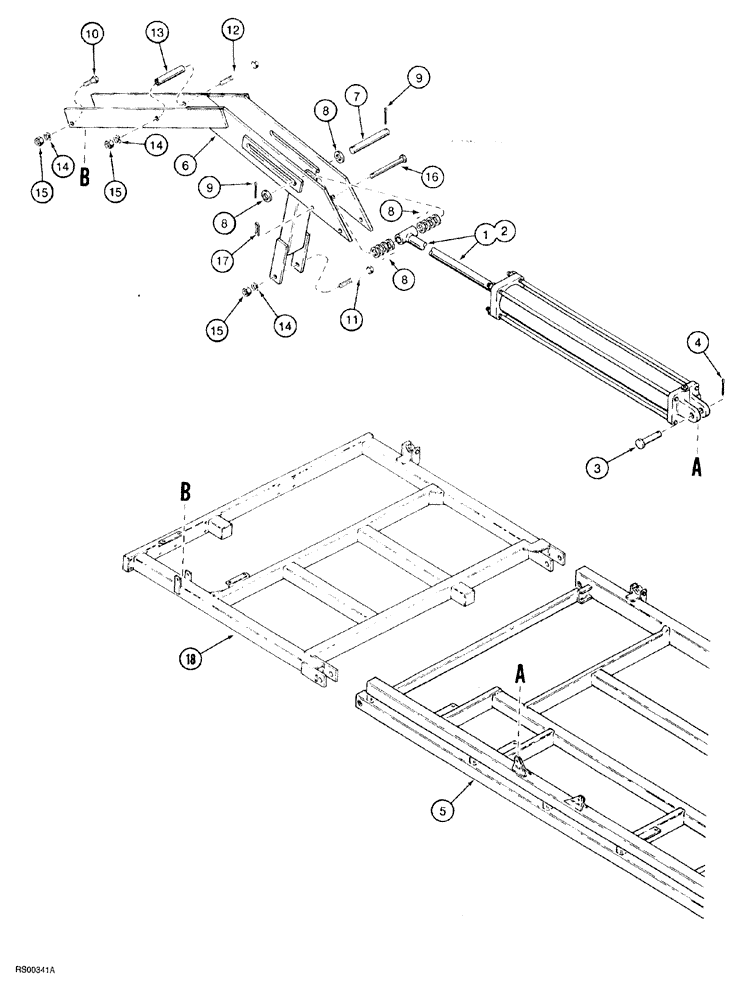

Запчасти Case IH 5700 (9-110) - WING LIFT, LEVEL LIFT MODELS, VERTICAL FOLD, 27 FOOT THROUGH 33 FOOT WIDE (18) - MISCELLANEOUS

1

1285753C94

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 34 inch (864 mm) stroke (See Fig. 8-62) (If used)

2шт.

2

810665C91

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 34 inch (866 mm) stroke (See Fig. 8-64) (If used)

2шт.

3

810751C1

PIN

1 x 3-1/2 inch long

2шт.

4

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

5

REF

INSTRUCTION

FRAME ASSEMBLY, main

1шт.

6

96049C1

SUPPORT

HINGE primary wing lift

2шт.

7

811962C1

PIN

pivot

2шт.

8

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat

20шт.

9

432-1224

COTTER PIN,3/16" x 1-1/2"

4шт.

10

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

4шт.

11

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex, 5/8 NC x 6 inch

2шт.

12

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

BOLT hex, 5/8 NC x 7 inch

2шт.

13

517668R1

SPACER,3/4" Pipe x 5 1/8"

3/4 x 5-1/8 inch

2шт.

14

492-11062

BEARING WASHER,5/8"

8шт.

15

425-1010

NUT,5/8"-11, G5

8шт.

16

439-5892

HEADED PIN,1/2" x 5 3/4", G5

headed, 1/2 x 5-3/4 inch

2шт.

17

1978738C1

HAIR PIN COTTER

2шт.

18

REF

INSTRUCTION

FRAME primary wing, left-hand

1шт.
