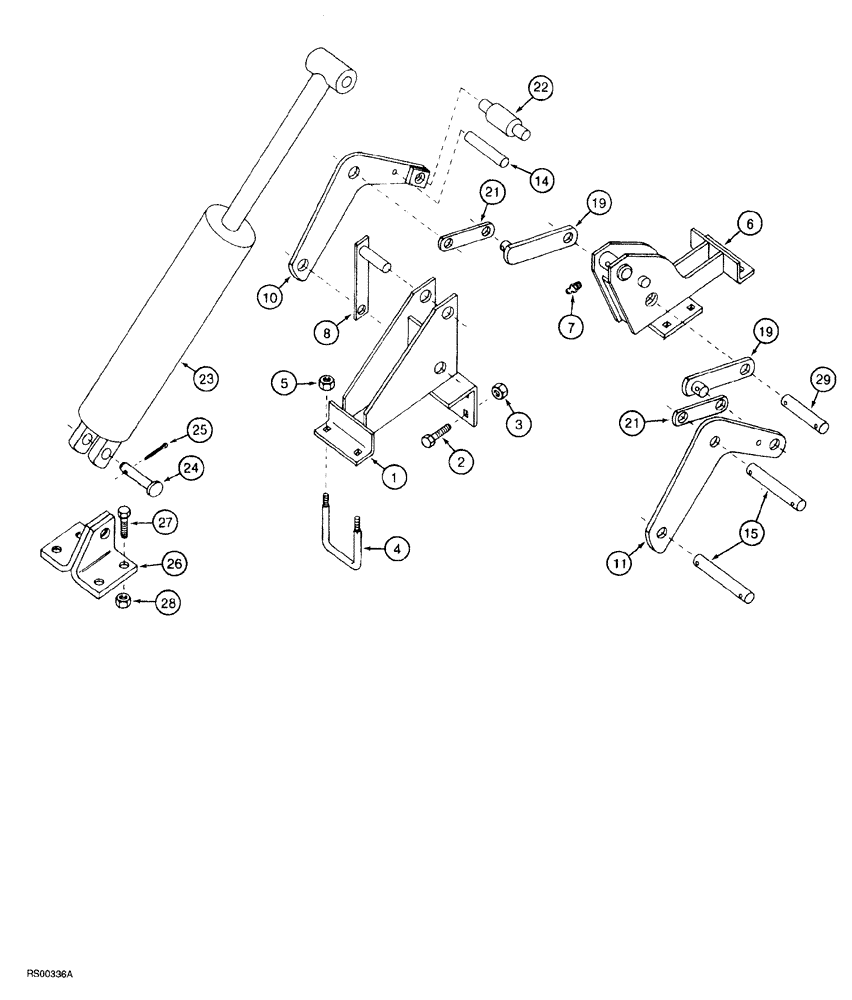

Запчасти Case IH 5700 (9-100) - SECONDARY WING LIFT HINGE - REAR, NON LEVEL MODELS, DOUBLE FOLD, 45 FOOT WIDE (18) - MISCELLANEOUS

1

813644C1

HINGE

wing frame, inner, rear

2шт.

2

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex, 5/8 NC x 3-1/4 inch

8шт.

3

425-1010

NUT,5/8"-11, G5

8шт.

4

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8 inch NC

12шт.

5

425-1010

NUT,5/8"-11, G5

24шт.

6

813652C1

HINGE

wing frame, outer, rear

2шт.

7

219-86

LUBE NIPPLE,1/8" NPTF

Straight, self tapping

4шт.

8

811958C1

PIN

hinge

2шт.

9

396-11106

WASHER,1 1/16" x 2" x .134", HDN

flat, 1-1/16 x 2 x 1/8 inch, hardened, not shown

4шт.

10

813184C1

LEVER

wing lift, left hand rear, right hand front

2шт.

11

813185C1

LEVER

wing lift, right hand rear, left hand front

2шт.

12

413-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

BOLT hex, 3/8 NC x 6-1/2 inch, not shown

2шт.

13

425-106

NUT,3/8"-16, Cl 5

Not shown

2шт.

14

512690R1

SPACER,1/2" Pipe x 4 3/4"

1/2 x 4-3/4 inch

2шт.

15

811962C1

PIN

pivot

4шт.

16

432-1224

COTTER PIN,3/16" x 1-1/2"

Not shown

8шт.

17

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

Flat, Not shown

14шт.

18

609836R1

WASHER

flat, 1-1/32 x 1-3/4 x 3/64 inch, special, not shown

8шт.

19

813181C1

PIVOT

ARM

4шт.

20

432-1224

COTTER PIN,3/16" x 1-1/2"

Not shown

4шт.

21

813640C1

BAR

LINK lever

4шт.

22

813189C1

PIN

roller

2шт.

23

224787C91

CYLINDER ASSY.

3-1/2 (89) ID x 18 inch (457 mm) stroke (See Fig. 8-58)

2шт.

24

810751C1

PIN

1 x 3-1/2 inch long

2шт.

25

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

26

813649C1

SUPPORT

SPARE PART BRACKET cylinder mounting

2шт.

27

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex, 5/8 NC x 3-1/4 inch

8шт.

28

425-1010

NUT,5/8"-11, G5

8шт.

29

810750C1

PIN

wing lift pivot

2шт.

30

432-1224

COTTER PIN,3/16" x 1-1/2"

Not shown

4шт.
