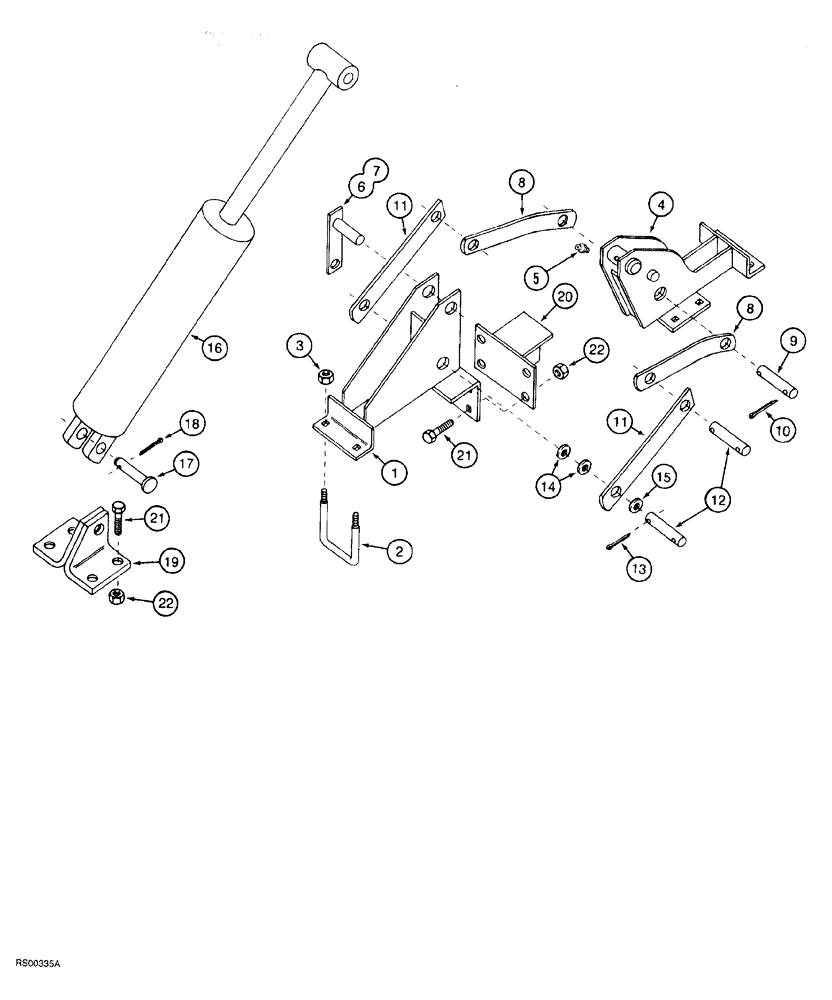

Запчасти Case IH 5700 (9-098) - SECONDARY WING LIFT HINGE - REAR, NON LEVEL MODELS, DOUBLE FOLD, 39 FOOT WIDE (18) - MISCELLANEOUS

1

813644C1

HINGE

wing frame, inner, rear

2шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8 inch NC

16шт.

3

425-1010

NUT,5/8"-11, G5

32шт.

4

813652C1

HINGE

wing frame, outer, rear

2шт.

5

219-86

LUBE NIPPLE,1/8" NPTF

Straight, self tapping

4шт.

6

811958C1

PIN

hinge

2шт.

7

396-11106

WASHER,1 1/16" x 2" x .134", HDN

flat, 1-1/16 x 2 x 1/8 inch, hardened, special

4шт.

8

811963C1

BAR

LINK hinge

4шт.

9

810750C1

PIN

wing lift pivot

2шт.

10

432-1224

COTTER PIN,3/16" x 1-1/2"

4шт.

11

813191C1

BAR

ARM wing lift

4шт.

12

811962C1

PIN

pivot

4шт.

13

432-1224

COTTER PIN,3/16" x 1-1/2"

8шт.

14

614451R1

WASHER

flat, 1-1/32 x 1-3/4 x 7/64 inch, special

14шт.

15

609836R1

WASHER

flat, 1-1/32 x 1-3/4 x 3/64 inch, special

8шт.

16

224787C91

CYLINDER ASSY.

3-1/2 (89) ID x 18 inch (457 mm) stroke (See Fig. 8-58)

2шт.

17

810751C1

PIN

1 x 3-1/2 inch long

2шт.

18

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

19

813649C1

SUPPORT

SPARE PART BRACKET cylinder mounting

2шт.

20

812373C1

STOP

frame

4шт.

21

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex, 5/8 NC x 3-1/4 inch

16шт.

22

425-1010

NUT,5/8"-11, G5

16шт.
