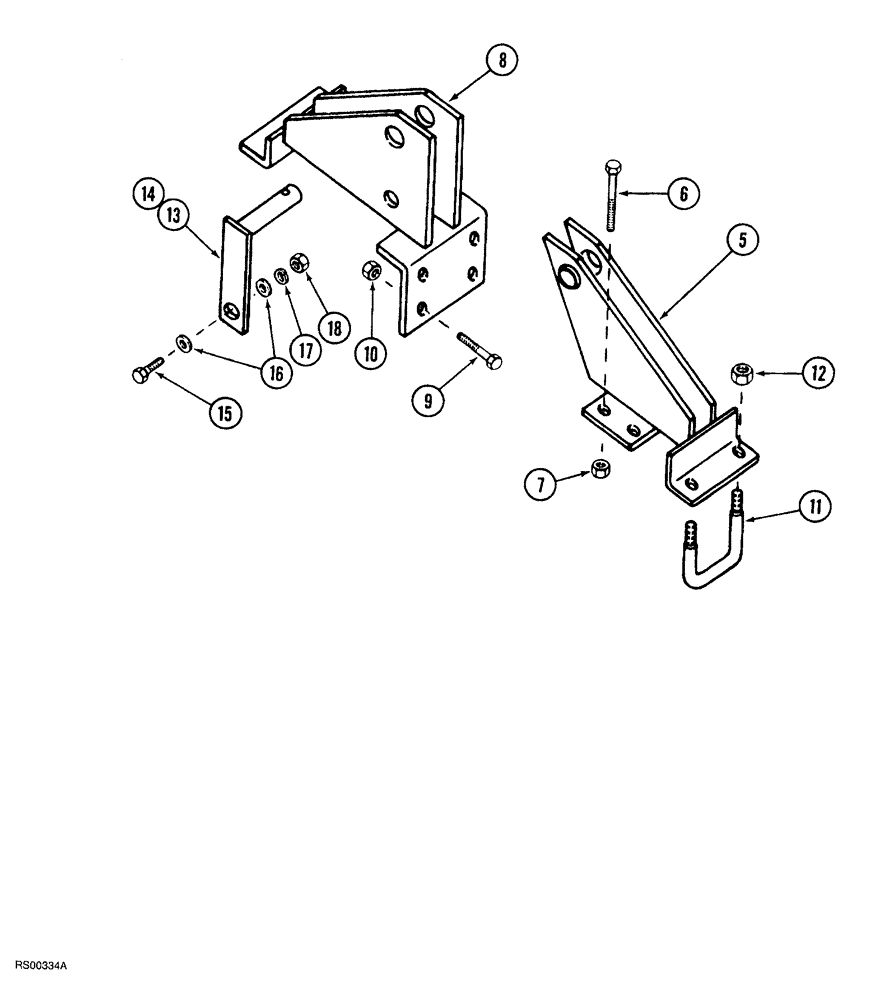

Запчасти Case IH 5700 (9-096) - SECONDARY WING LIFT HINGE - FRONT, NON LEVEL MODELS, DOUBLE FOLD, 39 FOOT AND 45 FOOT WIDE (18) - MISCELLANEOUS

5

812357C1

HINGE

SPARE PART wing frame, outer, front

2шт.

6

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex, 5/8 NC x 6 inch

8шт.

7

425-1010

NUT,5/8"-11, G5

8шт.

8

813644C1

HINGE

wing frame, inner, front

2шт.

9

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex, 5/8 NC x 3-1/4 inch

8шт.

10

425-1010

NUT,5/8"-11, G5

8шт.

11

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8 inch NC

4шт.

12

425-1010

NUT,5/8"-11, G5

8шт.

13

811958C1

PIN

hinge

2шт.

14

396-11106

WASHER,1 1/16" x 2" x .134", HDN

flat, 1-1/16 x 2 x 1/8 inch, hardened

4шт.

15

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

2шт.

16

495-81027

WASHER,21/32" x 1 1/2" x .120"

flat, 21/32 x 1-1/2 x 7/64 inch, special

4шт.

17

492-11062

BEARING WASHER,5/8"

2шт.

18

425-1010

NUT,5/8"-11, G5

2шт.
