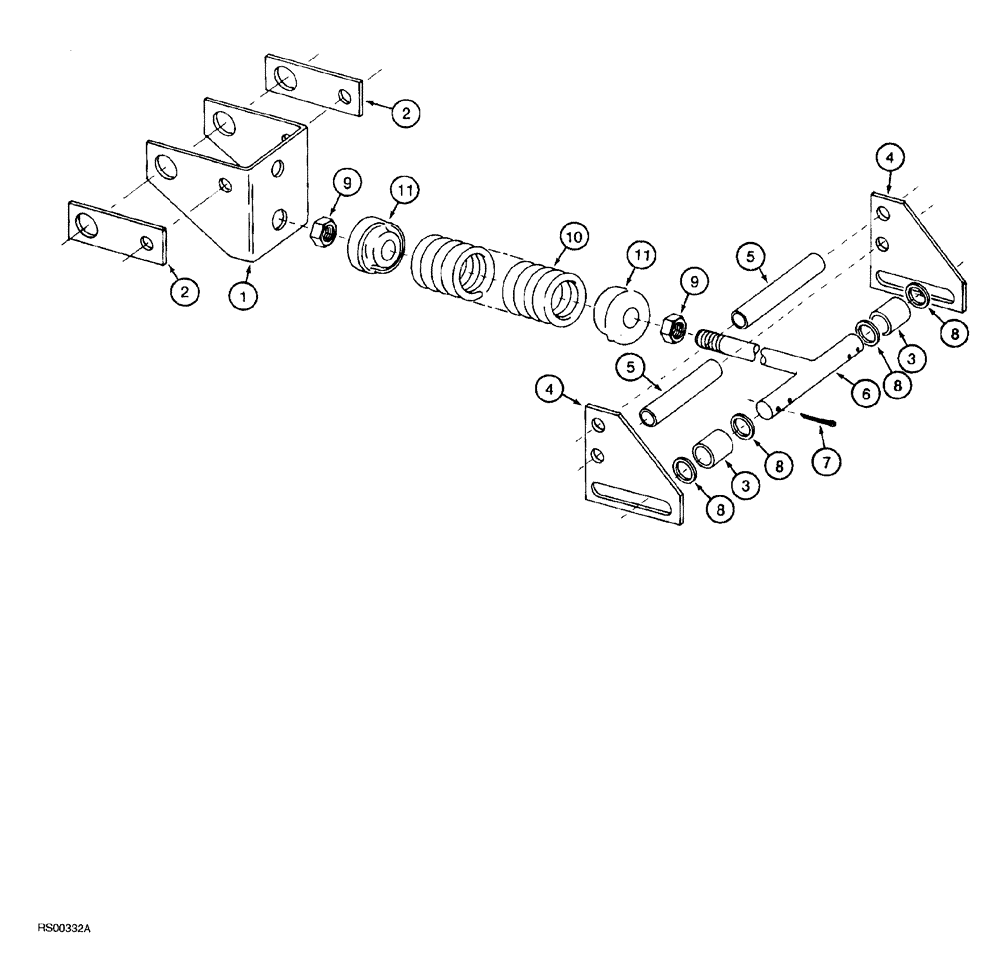

Запчасти Case IH 5700 (9-092) - WING LIFT HELPER SPRING, NON LEVEL LIFT MODELS, SINGLE FOLD MODELS, 25 FOOT THROUGH 31 FOOT WIDE (18) - MISCELLANEOUS

1

810173C1

CHANNEL

SPARE PART spring support

2шт.

2

810168C1

BAR

PLATE spacer, spring support channel

4шт.

3

811152C1

BUSHING

spring holder

4шт.

4

810169C1

BAR

PLATE spring holder support

4шт.

5

82798R1

SPACER,1/2" X-Strng Pipe x 4 3/16"

1/2 x 4-3/16 inch

4шт.

6

810163C1

HOLDER

spring

2шт.

7

432-1224

COTTER PIN,3/16" x 1-1/2"

4шт.

8

495-81041

WASHER,25/32" x 1 1/2" x .060"

flat, 25/32 x 1-1/2 x 1/16 inch, special

8шт.

9

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

4шт.

10

608347R1

SPRING

helper

2шт.

11

608348R1

RETAINER

spring

4шт.
