Запчасти Case IH 5700 (9-090) - WING LIFT, NON LEVEL LIFT MODELS, SINGLE FOLD, 25 FOOT THROUGH 31 FOOT WIDE (18) - MISCELLANEOUS

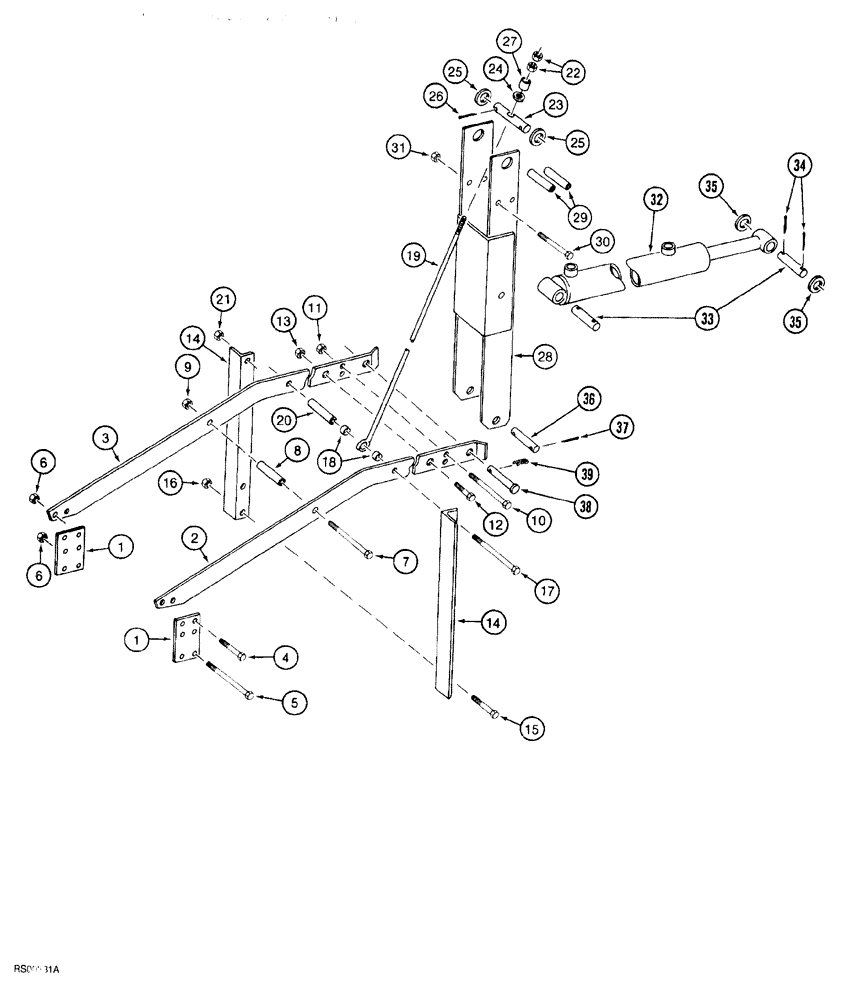

Схема запчастей Case IH 5700 - (9-090) - WING LIFT, NON LEVEL LIFT MODELS, SINGLE FOLD, 25 FOOT THROUGH 31 FOOT WIDE (18) - MISCELLANEOUS
26
15
3
2
33
34
30
7
18
28
1
16
12
17
35
20
8
6
6
29
39
19
5
23
31
36
25
11
10
14
25
14
38
24
35
37
4
27
32
22
1
9
21
13

Артикул

Название

Примечание

Количество

1

813040C1

BAR

PLATE wing lift support

4шт.

2

810108C1

SUPPORT

wing frame lift, front, left hand

1шт.

2

810109C1

SUPPORT

wing frame lift, front, right hand

1шт.

3

810109C1

SUPPORT

wing frame lift, rear, right hand

1шт.

3

810108C1

SUPPORT

wing frame lift, rear, left hand

1шт.

4

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

4шт.

5

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex, 5/8 NC x 6 inch

8шт.

6

425-1010

NUT,5/8"-11, G5

12шт.

7

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

BOLT hex, 1/2 NC x 6 inch

2шт.

8

82798R1

SPACER,1/2" X-Strng Pipe x 4 3/16"

1/2 x 4-3/16 inch, special (106 mm) long

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

2шт.

10

413-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

BOLT hex, 1/2 NC x 6-1/2 inch

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

4шт.

12

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

13

425-108

NUT,1/2" - 13, Gr 5

4шт.

14

810157C1

ANGLE

SPARE PART BRACKET lift support

4шт.

15

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

hex, 5/8 NC x 5-1/2 inch

4шт.

16

425-1010

NUT,5/8"-11, G5

4шт.

17

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

hex, 3/4 NC x 6-1/2 inch

2шт.

18

162510C1

SPACER,1 3/8" Tube x 7/8"

1-1/8 ID x 7/8 inch long

4шт.

19

810150C2

ROD

wing lift control

2шт.

20

810151C1

BUSHING

control rod

2шт.

21

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

2шт.

22

425-1414

JAM NUT,Jam, 7/8"-9, G5

4шт.

23

810000C2

PIN

control rod

2шт.

24

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

2шт.

25

95-81150

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

flat, 1-13/16 x 2-1/2 x 1/8 inch

4шт.

26

617943R1

PIN,5/16" x 2 1/2", Coiled

cotter, 5/16 x 2-1/2 inch

4шт.

27

810154C1

SPACER

control rod, used on one side only

1шт.

28

810158C1

ARM

SPARE PART wing lift control

2шт.

29

810172C1

SPACER

control arm

4шт.

30

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

hex, 1/2 NC x 7 inch

4шт.

31

425-108

NUT,1/2" - 13, Gr 5

4шт.

32

1282421C91

CYLINDER ASSY.

4-1/2 (114) ID x 34 inch (864 mm) stroke (See Fig. 8-72)

1шт.

33

810048C1

PIN

lift cylinder mounting

2шт.

34

432-1640

COTTER PIN,1/4" x 2 1/2"

1/4" x 2 1/2"

4шт.

35

495-81191

WASHER,1 5/32" x 2" x .060"

flat, 1-5/32 x 2 x 3/64 inch

4шт.

36

810001C1

PIN

control arm bar pivot

2шт.

37

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

38

810002C1

PIN

wing lift transport

2шт.

39

1978738C1

HAIR PIN COTTER

2шт.

Выбрано товаров: 41
