Запчасти Case IH 5700 (9-088) - HUBS, WHEELS AND TIRES (18) - MISCELLANEOUS

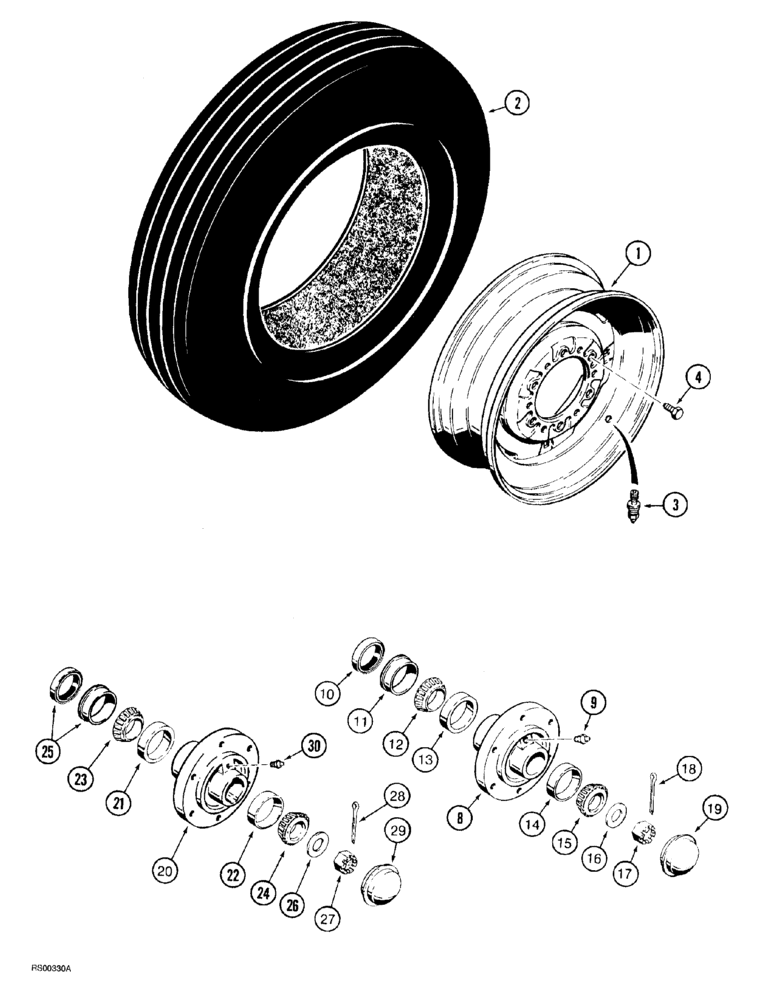

Схема запчастей Case IH 5700 - (9-088) - HUBS, WHEELS AND TIRES (18) - MISCELLANEOUS
15
24
3
12
30
13
19
25
21
9
8
18
16
2
29
1
27
20
22
26
11
23
28
4
14
10
17

Артикул

Название

Примечание

Количество

1

481344R91

WHEEL

14 x 8 inch

1шт.

1

T53527

WHEEL

15 x 5 inch

1шт.

2

REF

INSTRUCTION

TIRE, purchase locally

1шт.

3

810769C1

VALVE

inflation, used with 5/8 inch rim hole

1шт.

4

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

hex conical, 1/2 NF x 1-5/32 inch

1шт.

8

810087C2

HUB

wheel, six bolt mount, light duty hub

1шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Light duty hub

1шт.

10

472222R1

SLEEVE

oil seal, light duty hub

1шт.

11

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil, light duty hub

1шт.

12

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller, 1-1/4 inch ID, light duty hub

1шт.

13

651817R1

BEARING CUP

CUP tapered roller, 2-21/64 inch O.D., light duty hub

1шт.

14

651814R1

BEARING CUP

tapered roller, 1-25/32 inch O.D., light duty hub

1шт.

15

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

tapered roller, 3/4 inch ID, light duty hub

1шт.

15

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

16

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32 x 1/4 x 1/8 inch, light duty hub

1шт.

17

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF, light duty hub

1шт.

18

432-824

COTTER PIN,1/8" x 1 1/2"

Light duty hub

1шт.

19

B13280

HUB CAP

wheel , light duty hub

1шт.

606468R21

HUB

ASSEMBLY, wheel, six bolt mount, heavy duty hub

1шт.

20

NSS

NOT SOLD SEPARAT

HUB wheel, heavy duty hub

1шт.

21

663558R1

BEARING CUP

CUP tapered roller, 2-57/64 inch O.D., part of repair kit 123096A2, heavy duty hub

1шт.

22

651817R1

BEARING CUP

CUP tapered roller, 2-21/64 inch O.D., part of repair kit 123096A2, heavy duty hub

1шт.

23

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

tapered roller, 1-5/8 inch ID, part of repair kit 123096A2, heavy duty hub

1шт.

24

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller, 1-1/4 inch ID, part of repair kit 123096A2, heavy duty hub

1шт.

25

606556R91

OIL SEAL

oil, with sleeve, part of repair kit 123096A2, heavy duty hub

1шт.

26

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

flat, 29/32 x 1-3/4 x 7/64 inch, heavy duty hub

1шт.

27

70120D

SLOTTED NUT,7/8"-14

hex, special, 7/8 inch NC, heavy duty hub

1шт.

28

432-832

COTTER PIN,1/8" x 2"

heavy duty hub 1/8" x 2"

1шт.

29

224066C1

HUB CAP

(Replaces 663906R1), heavy duty hub

1шт.

30

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Heavy duty hub

1шт.

123096A2

WHEEL BEARING KIT

repair, includes Refs. 21 thru 25, heavy duty hub

1шт.

Выбрано товаров: 31
