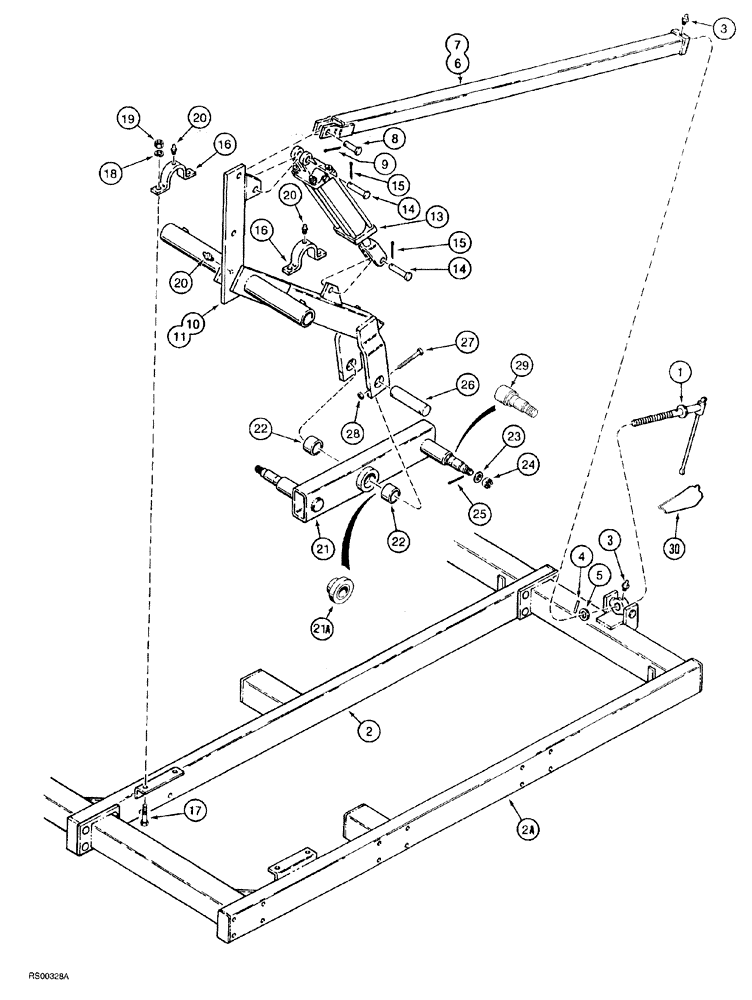

Запчасти Case IH 5700 (9-084) - WING FRAME AXLES AND DEPTH CONTROL, LEVEL LIFT MODELS, DOUBLE FOLD SECONDARY WING (18) - MISCELLANEOUS

1

1284398C3

STUD

truss rod, depth control

2шт.

2

REF

INSTRUCTION

FRAME secondary wing

1шт.

2

REF

INSTRUCTION

FRAME secondary wing

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

4

38-32432

PIN,3/8" x 2", Coiled

3/8" x 2", Coiled

2шт.

5

495-21138

WASHER,1 1/4"

flat, 1-3/8 x 3 x 5/32 inch

2шт.

6

1284403C1

ROD

TUBE truss rod, used on 5600 only

2шт.

7

1284474C1

TUBE,1764 mm Length

TUBE truss rod, used on 5700 only

2шт.

8

439-11639

HEADED PIN,1" x 2 7/16"

headed, 1 x 2-7/16 inch, grade 2

2шт.

9

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

10

91066C2

SHAFT

ROCKSHAFT wing frame, 26 inch (660 mm) ground clearance, used on 5600 only

2шт.

11

91070C2

SHAFT

ROCKSHAFT wing frame, 32 inch (813 mm) ground clearance, used on 5700 only

2шт.

13

1282324C93

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 8 inch (203 mm) stroke (See Fig. 8-40)

2шт.

14

810751C1

PIN

1 x 3-1/2 inch long

4шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

16

811038C2

CLAMP

rockshaft

4шт.

17

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

18

492-11062

BEARING WASHER,5/8"

8шт.

19

425-1010

NUT,5/8"-11, G5

8шт.

20

219-87

LUBE NIPPLE,1/4" - 28 NPTF

6шт.

1284065C93

TUBE NUT

AXLE main frame

2шт.

21

NSS

NOT SOLD SEPARAT

AXLE wing frame

1шт.

21

1337962C2

SUPPORT

axle bushing, replaces non serviceable, square type support used in some applications, part of axle pivot service kit 1337614C1

2шт.

22

89230C1

BUSHING,51.18mm ID x 63.15mm OD x 40mm L

axle, part of axle pivot service kit 1337614C1

1шт.

23

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32 x 1/4 x 1/8 inch

2шт.

24

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF

2шт.

25

137204

COTTER PIN,1/8" x 1 1/2"

2шт.

26

1279363C2

PIN,50.8mm OD x 165mm L

pivot, part of axle pivot service kit 1337614C1

2шт.

27

326-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

Part of axle pivot service kit 1337614C1

4шт.

28

232-4136

LOCK NUT,3/8"-16, GC

Part of axle pivot service kit 1337614C1

4шт.

29

96131C91

SPINDLE

ASSEMBLY, repair, welds to axle assembly, service replacement

4шт.

30

1973010C1

RETAINER

spring

2шт.

1337614C1

PACKAGE

KIT axle pivot service, includes Refs. 21, 22, 26, 27 and 28

1шт.
