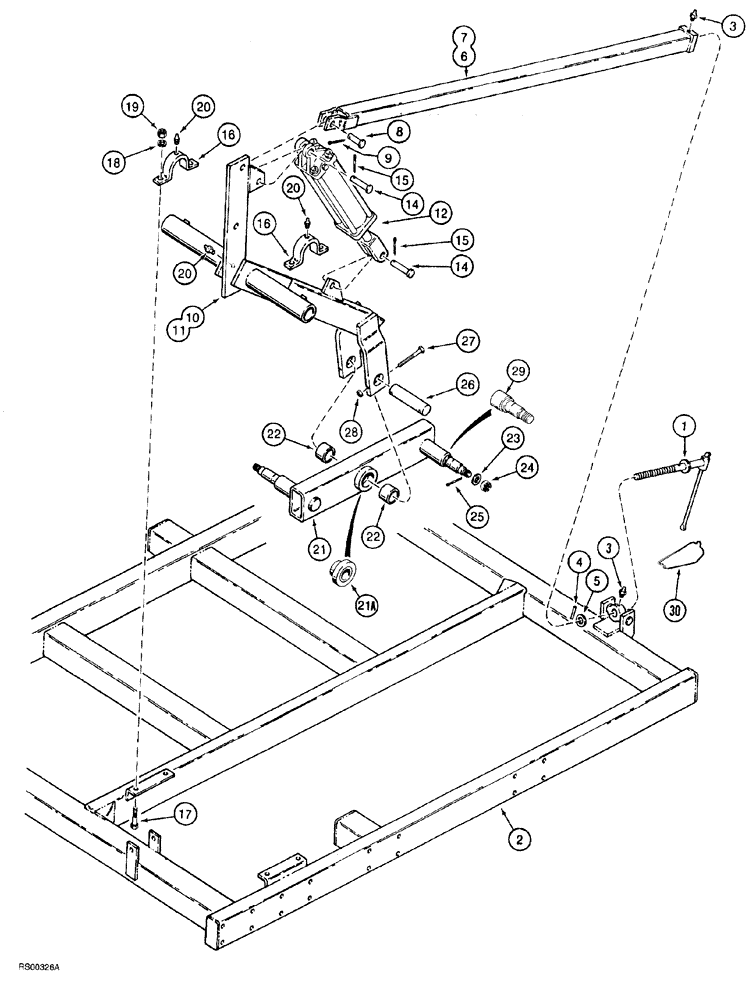

Запчасти Case IH 5700 (9-080) - WING FRAME AXLES AND DEPTH CONTROL, LEVEL LIFT MODELS, VERTICAL AND DOUBLE FOLD PRIMARY WING (18) - MISCELLANEOUS

1

1284398C3

STUD

truss rod, depth control

2шт.

2

REF

INSTRUCTION

FRAME wing

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

4

38-32432

PIN,3/8" x 2", Coiled

3/8" x 2", Coiled

2шт.

5

495-21138

WASHER,1 1/4"

flat, 1 -3/8 x 3 x 5/32 inch

2шт.

6

1284403C1

ROD

TUBE truss rod, used on 5600 only

2шт.

7

1284474C1

TUBE,1764 mm Length

TUBE truss rod, used on 5700 only

2шт.

8

439-11639

HEADED PIN,1" x 2 7/16"

headed, 1 x 2-7/16 inch, grade 2

2шт.

9

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

10

91066C2

SHAFT

ROCKSHAFT wing frame, 26 inch (660 mm) ground clearance, used on 5600 only

2шт.

11

91070C2

SHAFT

ROCKSHAFT wing frame, 32 inch (813 mm) ground clearance, used on 5700 only

2шт.

12

1282328C92

CYLINDER ASSY.

3-3/4 (95) ID x 8 inch (203 mm) stroke (See Fig. 8-44)

2шт.

12

87423766R

REMAN-HYD CYLINDER

3-3/4" x 8"

2шт.

12

87423766C

CORE-HYD CYLINDER

Return Number

2шт.

14

810751C1

PIN

1 x 3-1/2 inch long

4шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

16

811038C2

CLAMP

rockshaft

4шт.

17

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

18

492-11062

BEARING WASHER,5/8"

8шт.

19

425-1010

NUT,5/8"-11, G5

8шт.

20

219-87

LUBE NIPPLE,1/4" - 28 NPTF

6шт.

1284065C92

TUBE ASSY.

AXLE main frame

2шт.

21

NSS

NOT SOLD SEPARAT

AXLE frame

1шт.

21

1337962C2

SUPPORT

axle bushing, replaces non serviceable, square type support used in some applications, part of axle pivot service kit 1337614C1

2шт.

22

89230C1

BUSHING,51.18mm ID x 63.15mm OD x 40mm L

axle, part of axle pivot service kit 1337614C1

1шт.

23

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32 x 1/4 x 1/8 inch

2шт.

24

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF

2шт.

25

137204

COTTER PIN,1/8" x 1 1/2"

2шт.

26

1279363C2

PIN,50.8mm OD x 165mm L

pivot, rockshaft to axle, part of axle pivot service kit 1337614C1

2шт.

27

326-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

Part of axle pivot service kit 1337614C1

4шт.

28

232-4136

LOCK NUT,3/8"-16, GC

Part of axle pivot service kit 1337614C1

4шт.

29

95830C91

SPINDLE

SPARE PART axle, welds to axle assembly, service replacement

4шт.

1337614C1

PACKAGE

KIT axle pivot service, includes Refs. 21, 22, 26, 27 and 28

1шт.
