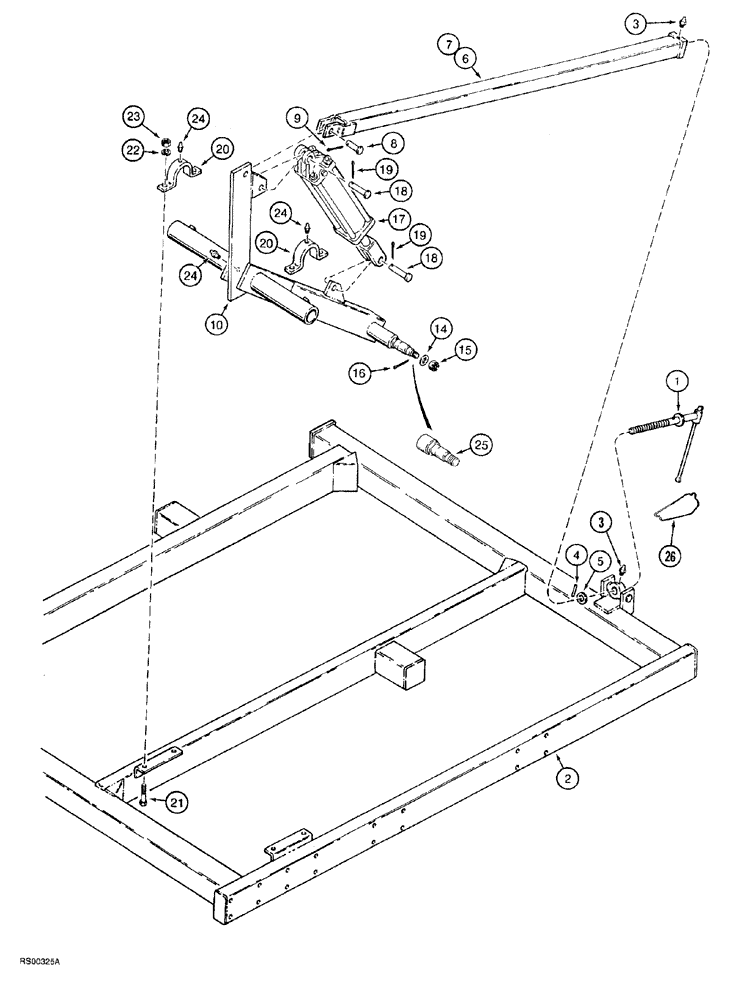

Запчасти Case IH 5700 (9-078) - WING FRAME AXLE AND DEPTH CONTROL, LEVEL LIFT MODELS, FLAT FOLD, 23 FOOT THROUGH 27 FOOT WIDE (18) - MISCELLANEOUS
№
Артикул
Название
Примечание
Количество
1
1284398C3
STUD
truss rod, depth control
2шт.
2
REF
INSTRUCTION
FRAME wing
1шт.
3
219-87
LUBE NIPPLE,1/4" - 28 NPTF
4шт.
4
438-32432
PIN,9.53mm OD x 50.8mm L
3/8" x 2", Coiled
2шт.
5
495-21138
WASHER,1 1/4"
flat, 1-3/8 x 3 x 5/32 inch
2шт.
6
1337957C1
TUBE ASSY.
truss rod, used on 5600 only
2шт.
7
1337955C1
TUBE ASSY.
truss rod, used on 5700 only
2шт.
8
439-11639
HEADED PIN,1" x 2 7/16"
headed, 1 x 2-7/16 inch, grade 2
2шт.
9
432-1624
COTTER PIN,1/4" x 1 1/2"
2шт.
10
1954823C1
PACKAGE,SERVICE
ROCKSHAFT ASSEMBLY, 26 inch (660 mm) ground clearance, right hand, used on 5600 only
1шт.
10
1954822C1
PACKAGE,SERVICE
ROCKSHAFT ASSEMBLY, 26 inch (660 mm) ground clearance, left hand, used on 5600 only
1шт.
10
1954821C1
PACKAGE,SERVICE
ROCKSHAFT ASSEMBLY, 32 inch (813 mm) ground clearance, right hand, used on 5700 only
1шт.
10
1954820C1
PACKAGE,SERVICE
ROCKSHAFT ASSEMBLY, 32 inch (813 mm) ground clearance, left hand, used on 5700 only
1шт.
14
369857R1
WASHER,20.7mm ID x 31.75mm OD x 3mm Thk
flat, special, 25/32 x 1/4 x 1/8 inch
1шт.
15
425-1312
SLOTTED NUT,3/4"-16, G5
hex, 3/4 inch NF
1шт.
16
432-824
COTTER PIN,1/8" x 1 1/2"
1шт.
17
1282322C93
CYLINDER
ASSEMBLY, 3-1/4 (83) ID x 8 inch (203 mm) stroke (See Fig. 8-38)
2шт.
87423770R
REMAN-HYD CYLINDER
5600, 5700 both CASE IH CHISEL PLOW, Reman for New P/N 1282322C93
2шт.
87423770C
CORE-HYD CYLINDER
Return Number
1шт.
18
810751C1
PIN
1 x 3-1/2 inch long
4шт.
19
432-1624
COTTER PIN,1/4" x 1 1/2"
4шт.
20
811038C2
CLAMP
rockshaft
4шт.
21
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
8шт.
22
492-11062
BEARING WASHER,5/8"
8шт.
23
425-1010
NUT,5/8"-11, G5
8шт.
24
219-87
LUBE NIPPLE,1/4" - 28 NPTF
6шт.
25
96131C91
SPINDLE
ASSEMBLY repair, welds to rockshaft assembly, service replacement
2шт.
26
1973010C1
RETAINER
spring
2шт.
Выбрано товаров: 28
