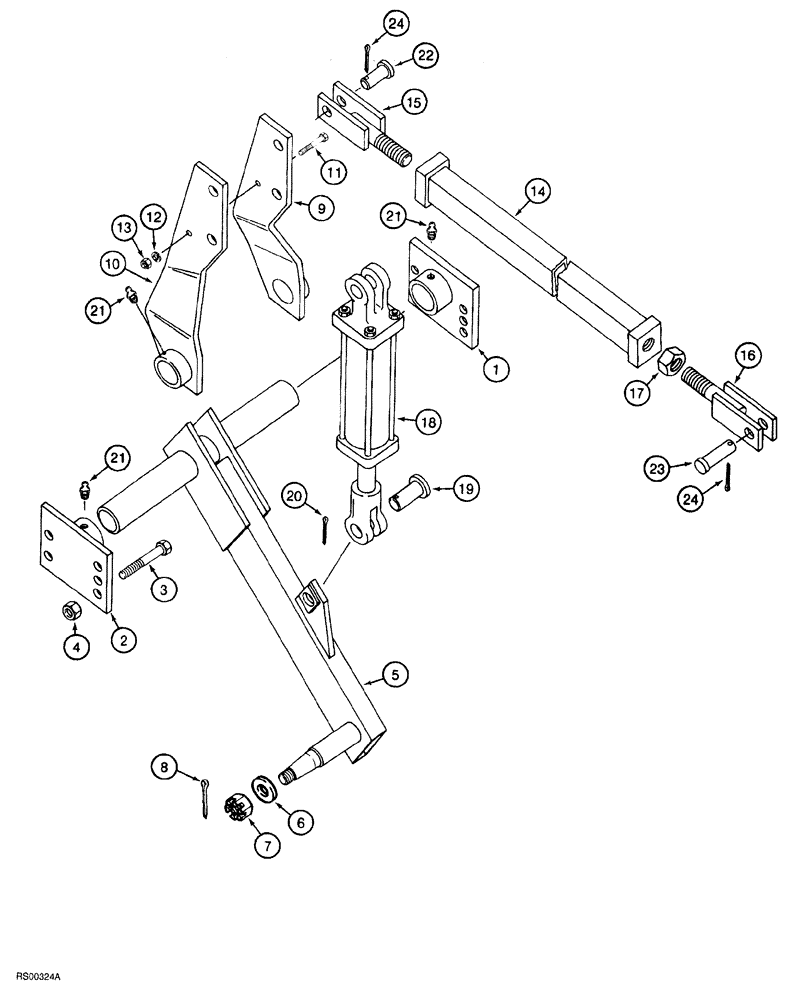

Запчасти Case IH 5700 (9-076) - WING FRAME AXLE AND DEPTH CONTROL, NON LEVEL LIFT MODELS, DOUBLE FOLD SECONDARY WING, 45 FOOT WIDE (18) - MISCELLANEOUS

1

813665C1

SUPPORT

wing frame rockshaft, left hand

2шт.

2

813639C1

SUPPORT

wing frame rockshaft, right hand

2шт.

3

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex, 5/8 NC x 3-1/4 inch

16шт.

4

425-1010

NUT,5/8"-11, G5

16шт.

810410C91

AXLE

ROCKSHAFT ASSEMBLY, wing frame, left hand

2шт.

810411C91

AXLE

ROCKSHAFT ASSEMBLY, wing frame, right hand

2шт.

5

NSS

NOT SOLD SEPARAT

ROCKSHAFT secondary wing frame

1шт.

6

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32 x 1/4 x 1/8 inch

2шт.

7

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF

2шт.

8

432-824

COTTER PIN,1/8" x 1 1/2"

2шт.

9

813710C1

SUPPORT

truss rod, left hand

2шт.

10

813711C1

SUPPORT

truss rod, right hand

2шт.

11

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

2шт.

14

812370C1

ROD

SPARE PART truss, depth control

2шт.

15

811975C1

CLEVIS

truss rod, upper

2шт.

16

811976C1

CLEVIS

truss rod, lower

2шт.

17

425-1020

NUT,1 1/4"-7, G5

hex, 1-1/4 inch NC

2шт.

18

1282324C93

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 8 inch (203 mm) stroke (See Fig. 8-40)

2шт.

84255910R

REMAN-HYD CYLINDER

5600, 5700, Reman For New P/N 1282324C93

2шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

19

810751C1

PIN

1 x 3-1/2 inch long

4шт.

20

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

21

219-86

LUBE NIPPLE,1/8" NPTF

Straight, self tapping

8шт.

22

439-51644

HEADED PIN,1" x 2 3/4", G5

headed, 1 x 2-3/4 inch

2шт.

23

439-11668

HEADED PIN,25.4mm OD x 107.95mm L

headed, 1 x 4-1/4 inch long

2шт.

24

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.
