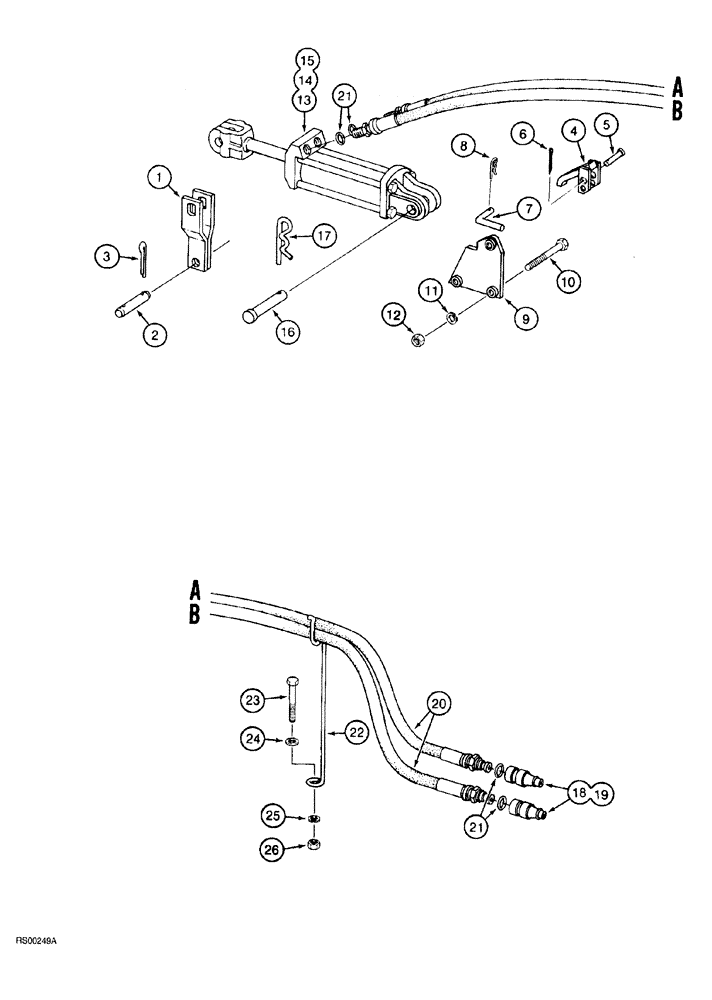

Запчасти Case IH 5700 (8-002) - DEPTH CONTROL HYDRAULICS, ALL TRAILING NON WING MODELS (08) - HYDRAULICS

1

608313R11

YOKE

UNIVERSAL JOINT YOKE depth control hydraulic locking

1шт.

2

PO28401

HEADED PIN,3/4" x 2 1/16"

headed, 3/4 x 2-1/16 inch

1шт.

3

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

4

526263R1

RETAINER

cylinder (Replaces 811032C1)

1шт.

5

21150R1

HEADED PIN,12.7mm OD x 57.15mm L

headed, 1/2 x 2-1/4 inch

1шт.

6

432-1216

COTTER PIN,3/16" x 1"

1шт.

7

602801R1

PIN

ROD retainer locking

1шт.

8

591107R1

COTTER PIN

cotter, hair

1шт.

9

810266C2

BRACKET

cylinder mounting

2шт.

10

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

11

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

12

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

2шт.

13

1263474C91

CYLINDER ASSY.

3-1/2 (89) ID x 8 inch (203 mm) stroke (See Fig. 8-42)

1шт.

14

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER straight, 3/4-16 male x 7/8-14 inch female O-ring boss

2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

16

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

headed, 1 x 3-1/4 inch

2шт.

17

1970957C1

SPRING

PIN cotter, hair, 3/16 inch

2шт.

18

1272399C2

QUICK MALE COUPLING

self sealing, male, 7/8 inch NF, poppet type , special, if used

2шт.

18

1341843C1

QUICK MALE COUPLING

self sealing male, 7/8-14 inch thread, special, if used

2шт.

18

1272399C2

QUICK MALE COUPLING

self sealing, male, 7/8 inch NF, if used

2шт.

18

1285718C2

QUICK MALE COUPLING

self sealing male, 3/4-16 inch thread, if used

2шт.

19

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

straight, 7/8-14 O-ring boss x 3/4 inch female O-ring boss, used to adapt 3/4" NPT hose

2шт.

19

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER straight, 3/4-16 male x 7/8-14 inch female O-ring boss, used to connect 7/8" NPT hose fit

2шт.

20

372437R91

HOSE

112 inch (2845 mm) long (7 foot wide frame)

2шт.

20

630457R91

HOSE ASSY.

132 inch (3353 mm) long (10 foot wide frame)

2шт.

20

372570R91

HOSE ASSY.

152 inch (3861 mm) long (13 foot wide frame)

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Used with 7/8" NPT coupling, if used

4шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Used with 3/4" NPT coupling, if used

4шт.

22

651793R2

SUPPORT

ROD hose

1шт.

23

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

BOLT hex, 5/8 NC x 2-1/4 inch

1шт.

24

495-81027

WASHER,21/32" x 1 1/2" x .120"

flat, 21/32 x 1-1/2 x 7/64 inch

1шт.

25

492-11062

BEARING WASHER,5/8"

1шт.

26

425-1010

NUT,5/8"-11, G5

1шт.
