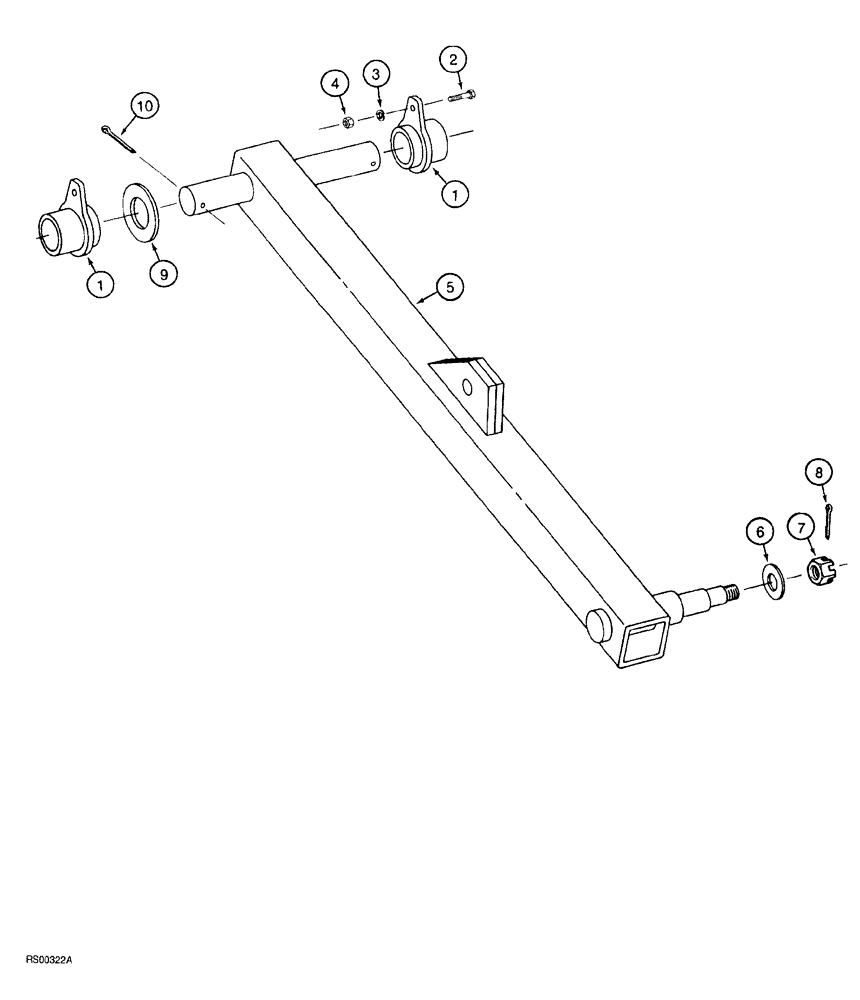

Запчасти Case IH 5700 (9-072) - WING FRAME AXLE, NON LEVEL LIFT MODELS, SINGLE FOLD, 25 FOOT THROUGH 31 FOOT WIDE (18) - MISCELLANEOUS

1

813201C1

BUSHING,44.58mm ID x 97.79mm OD x 38.1mm L

axle pivot

4шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

810088C91

AXLE

ASSEMBLY wing frame

2шт.

5

NSS

NOT SOLD SEPARAT

AXLE wing frame

1шт.

6

495-81063

WASHER,0.91" ID x 2" OD x 0.18" Thk

flat, 29/32 x 2 x 5/32 inch, special

1шт.

7

70120D

SLOTTED NUT,7/8"-14

hex, special, 7/8 inch NC

1шт.

9

95-81150

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

10

132-187

COTTER PIN,5/16" x 3"

4шт.

8

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

1шт.
