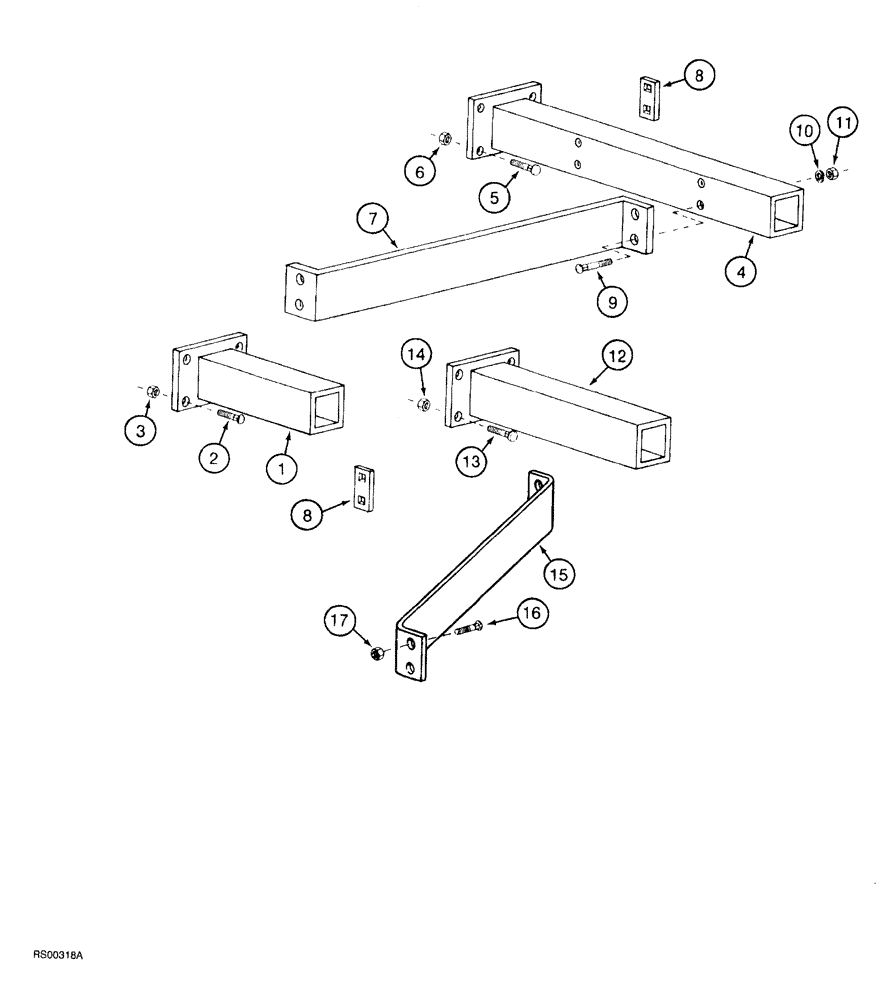

Запчасти Case IH 5700 (9-064) - FRAME EXTENSIONS, ALL SINGLE WING MODELS, ALL NON LEVEL LIFT MODELS (18) - MISCELLANEOUS

1

608331R91

EXTENSION

frame, 7-1/2 inch (191 mm) long

2шт.

2

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

8шт.

3

425-1010

NUT,5/8"-11, G5

8шт.

4

608332R92

EXTENSION

frame, 18-1/2 inch (470 mm) long

2шт.

5

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

round head square neck, 5/8 NC x 3-1/4 inch

8шт.

6

425-1010

NUT,5/8"-11, G5

8шт.

7

608338R1

STRAP

BRACE frame extension

2шт.

8

608339R1

BLOCK

BRACKET brace mounting

8шт.

9

433-1096

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

BOLT carriage, 5/8 NC x 6 inch

8шт.

10

492-11062

BEARING WASHER,5/8"

8шт.

11

425-1010

NUT,5/8"-11, G5

8шт.

12

811020C2

EXTENSION

frame, 36 inch (914 mm) long

2шт.

13

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

8шт.

14

425-1010

NUT,5/8"-11, G5

8шт.

15

811023C1

BRACE

frame extension

2шт.

16

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex, 5/8 NC x 6 inch

4шт.

17

425-1010

NUT,5/8"-11, G5

4шт.
