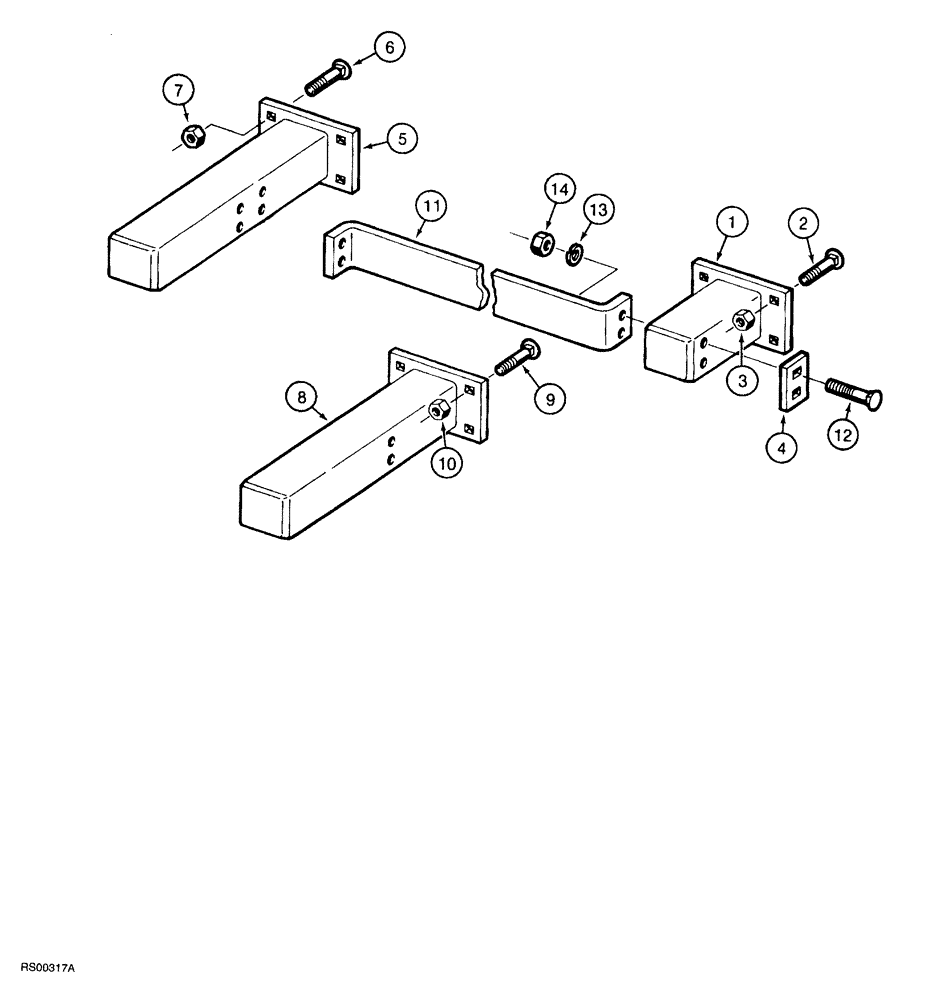

Запчасти Case IH 5700 (9-062) - FRAME EXTENSIONS, ALL DIRECT MOUNTED MODELS, ALL TRAIL BEHIND MODELS (18) - MISCELLANEOUS

1

608331R91

EXTENSION

frame, 7-1/2 inch (191 mm) long

2шт.

2

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

round head square neck, 5/8 NC x 3-1/4 inch

8шт.

3

425-1010

NUT,5/8"-11, G5

8шт.

4

608339R1

BLOCK

BRACKET brace mounting

4шт.

5

608332R92

EXTENSION

frame, 18-1/2 inch (470 mm) long

2шт.

6

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

8шт.

7

425-1010

NUT,5/8"-11, G5

8шт.

8

608473R91

EXTENSION

EXTENSION frame, 18-1/2 inch (470 mm) long (Order 608322R92)

1шт.

9

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

8шт.

10

425-1010

NUT,5/8"-11, G5

8шт.

11

608338R1

STRAP

BRACE frame extension

2шт.

12

433-1096

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

BOLT carriage, 5/8 NC x 6 inch

8шт.

13

492-11062

BEARING WASHER,5/8"

8шт.

14

425-1010

NUT,5/8"-11, G5

8шт.
