(9-054) - PRIMARY WING FRAME, LEVEL LIFT MODELS, VERTICAL FOLD, 27 FOOT THROUGH 33 FOOT WIDE

Запчасти Case IH 5700 (9-054) - PRIMARY WING FRAME, LEVEL LIFT MODELS, VERTICAL FOLD, 27 FOOT THROUGH 33 FOOT WIDE (18) - MISCELLANEOUS

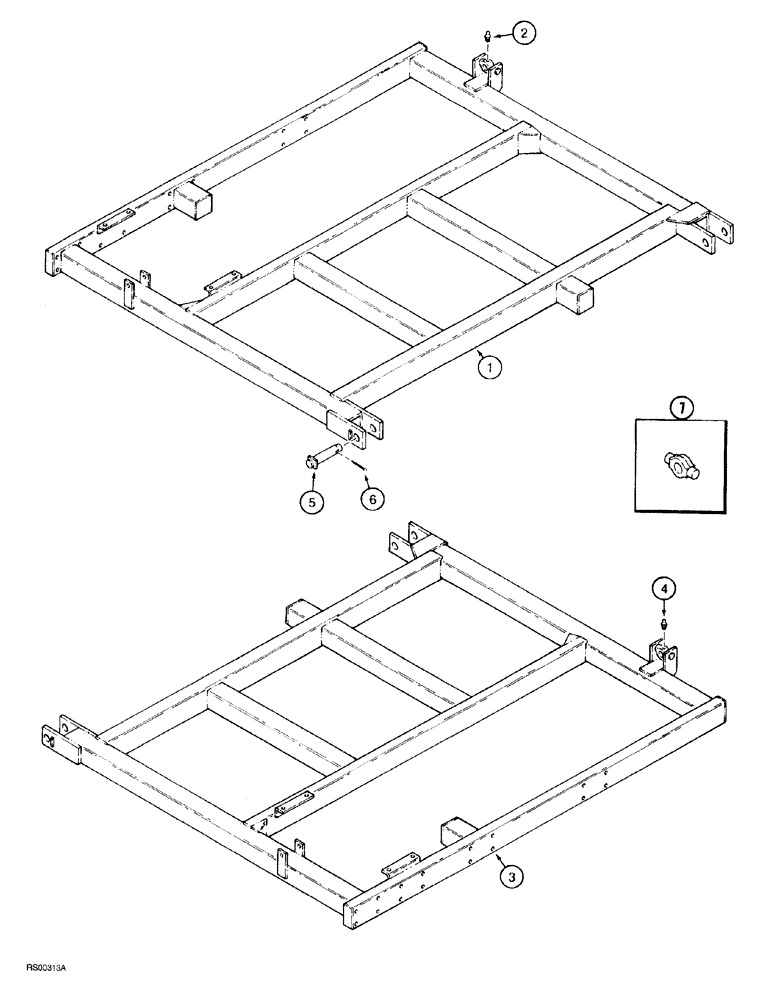

Схема запчастей Case IH 5700 - (9-054) - PRIMARY WING FRAME, LEVEL LIFT MODELS, VERTICAL FOLD, 27 FOOT THROUGH 33 FOOT WIDE (18) - MISCELLANEOUS
5
6
7
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

91329C1

FRAME

primary wing, left hand

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

3

91330C1

FUNNEL

FRAME primary wing, right hand

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

5

811965C2

PIN

hinge, hinge, primary wing frame to mam frame

4шт.

6

432-2040

COTTER PIN,5/16" x 2 1/2"

5/16" x 2 1/2"

4шт.

7

60134C2

TRUNNION

hitch crank, service replacement

2шт.

Выбрано товаров: 7
