Запчасти Case IH 5700 (9-052) - WING FRAME, LEVEL LIFT MODELS, FLAT FOLD, 23 FOOT THROUGH 27 FOOT WIDE (18) - MISCELLANEOUS

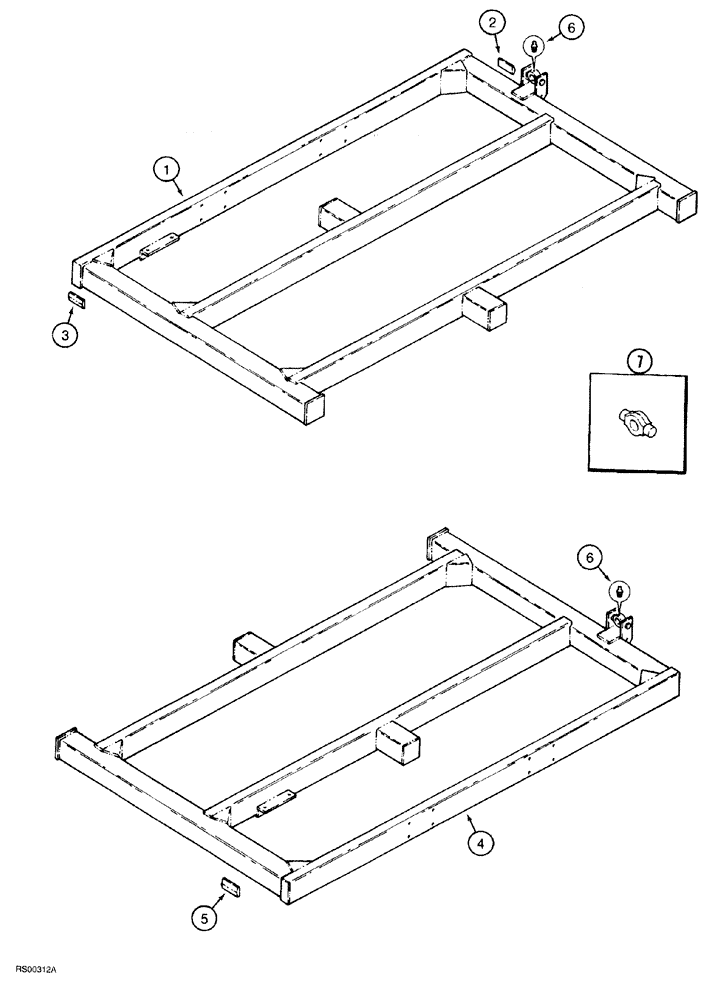

Схема запчастей Case IH 5700 - (9-052) - WING FRAME, LEVEL LIFT MODELS, FLAT FOLD, 23 FOOT THROUGH 27 FOOT WIDE (18) - MISCELLANEOUS
1
2
6
5
3
6
7
4

Артикул

Название

Примечание

Количество

1973355C3

FRAME

ASSEMBLT, wing, left hand

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME wing, left hand

1шт.

2

1284365C2

REFLECTOR

amber, front, left hand side

1шт.

3

1284374C1

REFLECTOR,Reflector Red

red, rear

1шт.

1973356C3

FRAME

ASSEMBLY, wing, right hand

1шт.

4

NSS

NOT SOLD SEPARAT

FRAME wing, left hand

1шт.

5

1284374C1

REFLECTOR,Reflector Red

red, rear

1шт.

6

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

7

60134C2

TRUNNION

hitch crank, service replacement

2шт.

Выбрано товаров: 9
