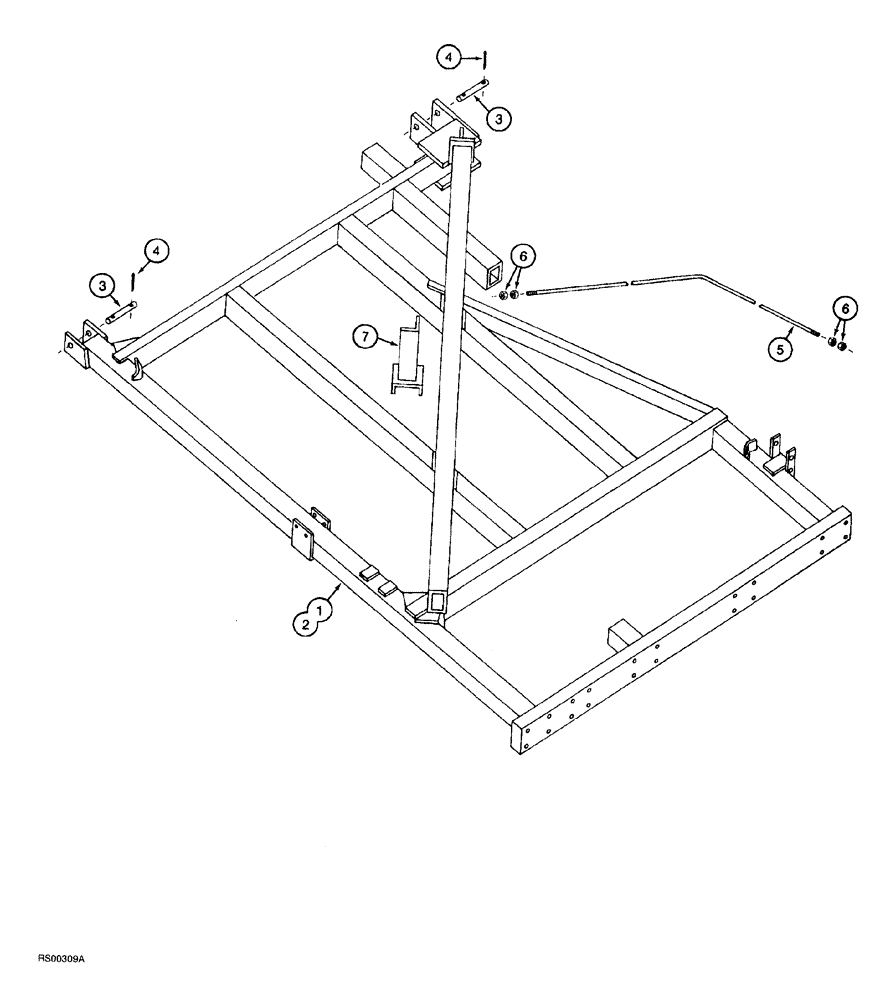

Запчасти Case IH 5700 (9-046) - PRIMARY WING FRAME, NON LEVEL LIFT MODELS, SINGLE AND DOUBLE FOLD, 33 FOOT THROUGH 45 FOOT WIDE (18) - MISCELLANEOUS

1

813667C4

FUNNEL

FRAME wing, primary, 5600 wing type chisel plow, left hand

1шт.

2

813668C4

FRAME

wing, primary, 5600 wing type chisel plow, right hand

1шт.

3

810945C1

PIN

wing frame hinge

4шт.

4

432-1640

COTTER PIN,1/4" x 2 1/2"

1/4" x 2 1/2"

8шт.

5

813663C2

ROD

truss, wing frame

2шт.

6

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

8шт.

7

810940C1

SUPPORT

wing frame truss rod

2шт.
