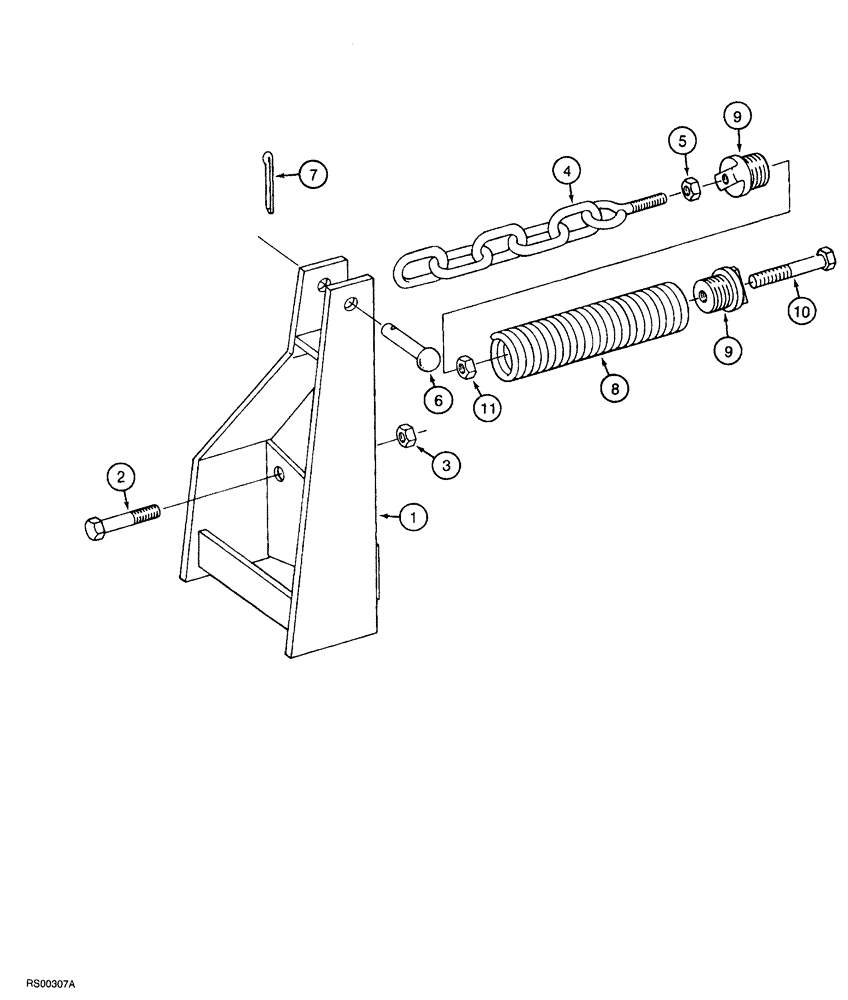

Запчасти Case IH 5700 (9-042) - WEIGHT TRANSER UNIT, SINGLE WING MODELS (18) - MISCELLANEOUS

1

813561C1

SUPPORT

weight transfer unit

1шт.

2

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

3

425-1010

NUT,5/8"-11, G5

1шт.

4

813593C1

CHAIN (AG)

SPARE PART weight transfer

1шт.

5

425-1010

NUT,5/8"-11, G5

1шт.

6

439-51248

HEADED PIN,3/4" x 3", G5

headed, 3/4 x 3 inch, chain retaining

1шт.

7

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

8

811342C1

SPRING

weight transfer

1шт.

9

811338C1

PLUG

spring

2шт.

10

812199C1

BOLT,Hex, 5/8" - 11 x 4"

hex head, 5/8 NC x 4 inch, special

1шт.

11

425-1010

NUT,5/8"-11, G5

1шт.
