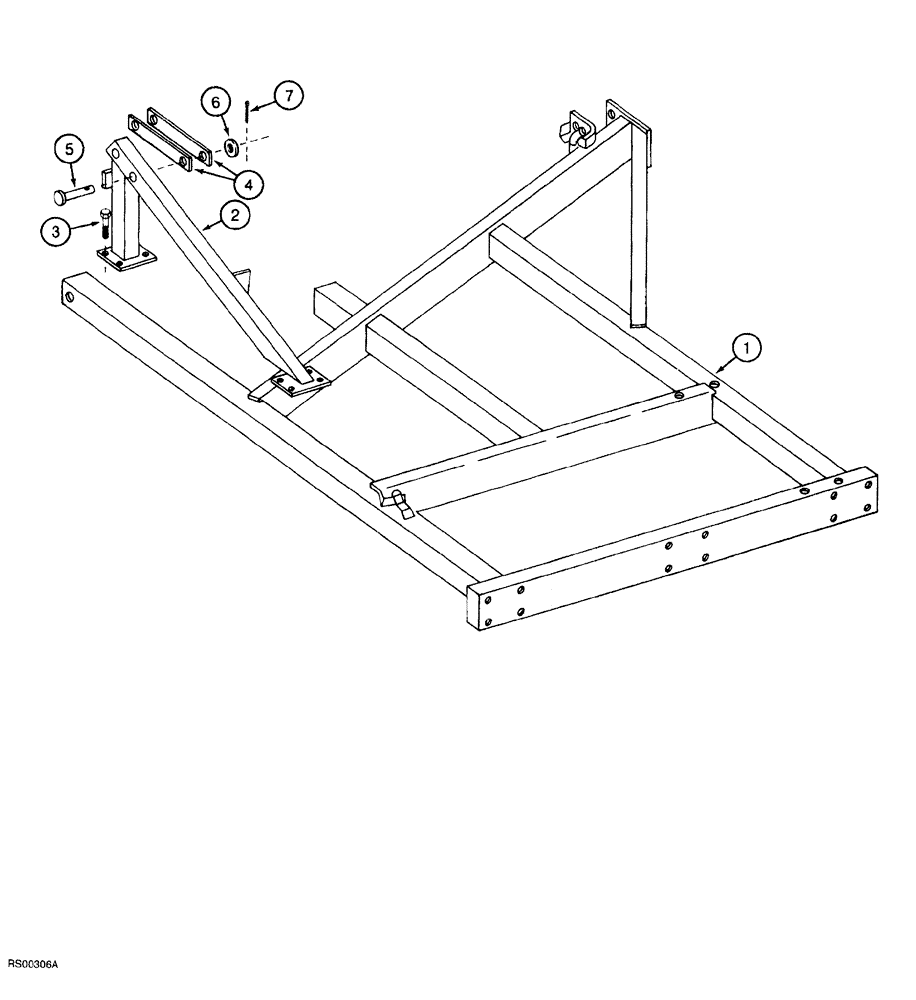

Запчасти Case IH 5700 (9-040) - WING FRAME, SINGLE WING MODELS (18) - MISCELLANEOUS

1

813521C1

FUNNEL

FRAME wing

1шт.

2

811825C1

FRAME

SPARE PART HINGE wing lift

1шт.

3

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex, 5/8 NC x 6 inch

8шт.

4

811852C1

BAR

SPARE PART LINK wing lift cylinder

2шт.

5

936587R91

PIN

headed, 1-1/8 x 3-1/2 inch long

2шт.

6

495-81191

WASHER,1 5/32" x 2" x .060"

flat, 1-5/32 x 2 x 3/64 inch, special

2шт.

7

432-1640

COTTER PIN,1/4" x 2 1/2"

1/4" x 2 1/2"

2шт.
