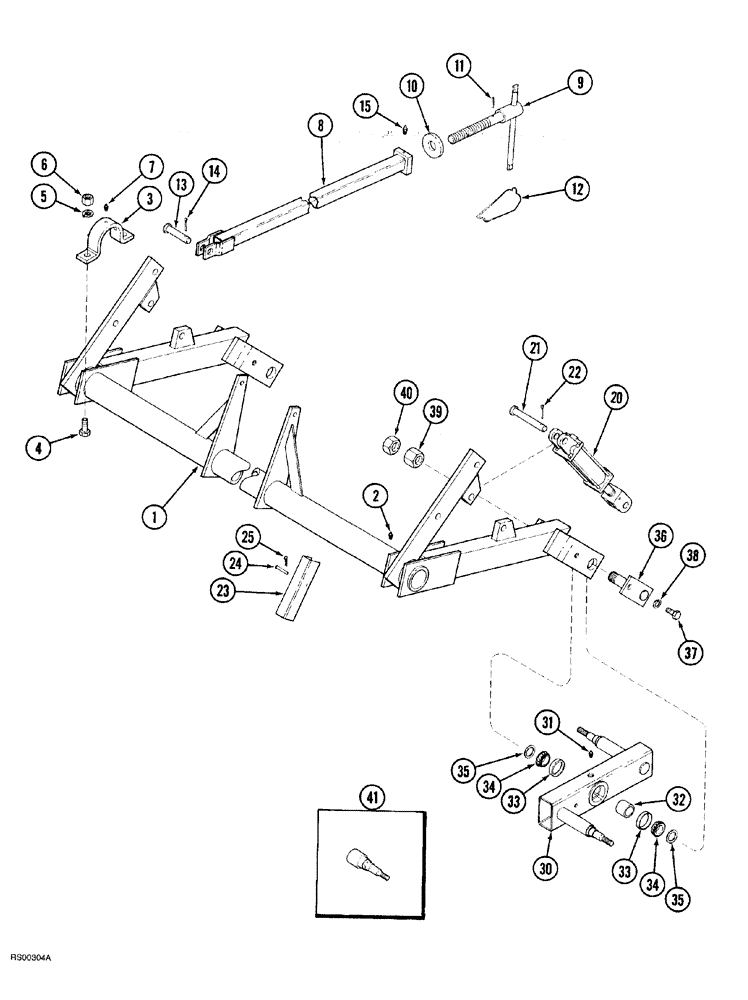

Запчасти Case IH 5700 (9-036) - MAIN FRAME AND DEPTH CONTROL, LEVEL LIFT MODELS, VERTICAL FOLD AND DOUBLE FOLD (18) - MISCELLANEOUS

1

135735A1

ROCKSHAFT

depth control, used on 5600 only

1шт.

135736A1

ROCKSHAFT

depth control, used on 5700 only

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

3

97786C2

STRAP

CLAMP rockshaft

4шт.

4

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

8шт.

5

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

6

429-1012

NUT,3/4"-10, G8

hex, NC

8шт.

7

219-86

LUBE NIPPLE,1/8" NPTF

Straight, self tapping

4шт.

8

1284476C1

TUBE

truss rod, used on 5600 only

2шт.

1284470C2

TUBE,1860 mm Length

truss rod, used on 5700 only

1шт.

9

1284398C3

STUD

truss rod

2шт.

10

495-81203

WASHER,1 9/32" x 2" x .120"

flat, 1 -9/32 x 2 x 1/8 inch

2шт.

11

438-32432

PIN,9.53mm OD x 50.8mm L

3/8" x 2", Coiled

2шт.

12

1973010C1

RETAINER

spring

2шт.

13

439-11639

HEADED PIN,1" x 2 7/16"

headed, 1 x 2-7/16 inch, grade 2

2шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

20

1272485C92

CYLINDER ASSY.

4 (102) ID x 8 inch (203 mm) stroke (See Fig. 8-48)

2шт.

21

810751C1

PIN

1 x 3-1/2 inch long

4шт.

22

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

23

1337050C1

CHANNEL

transport lockout

2шт.

24

439-1544

HEADED PIN,5/16" x 2 3/4"

headed, 5/16 x 2-3/4 inch, grade 2

2шт.

25

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

locking

2шт.

30

103073A1

TUBE,434 mm Length

AXLE main frame

2шт.

31

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

32

107921A2

TUBE

spacing

2шт.

33

453012R1

BEARING CUP

tapered roller

4шт.

34

8050528

ROLLER BEARING

tapered roller

4шт.

35

103066A1

WASHER,38.9mm ID x 53.98mm OD x 4mm Thk

spacer

4шт.

36

103069A2

PIN

pivot

2шт.

37

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

BOLT hex, 3/4 NC x 1 inch

2шт.

38

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

39

231-41124

LOCK NUT,1 1/2"-6, GB

hex, self locking, 1-1/2 inch NC

2шт.

40

131-1419

NUT,1 1/2"-6, Thin

hex, thin, 1-1/2 inch NC

2шт.

41

95961C1

SPINDLE

axle, repair

4шт.
