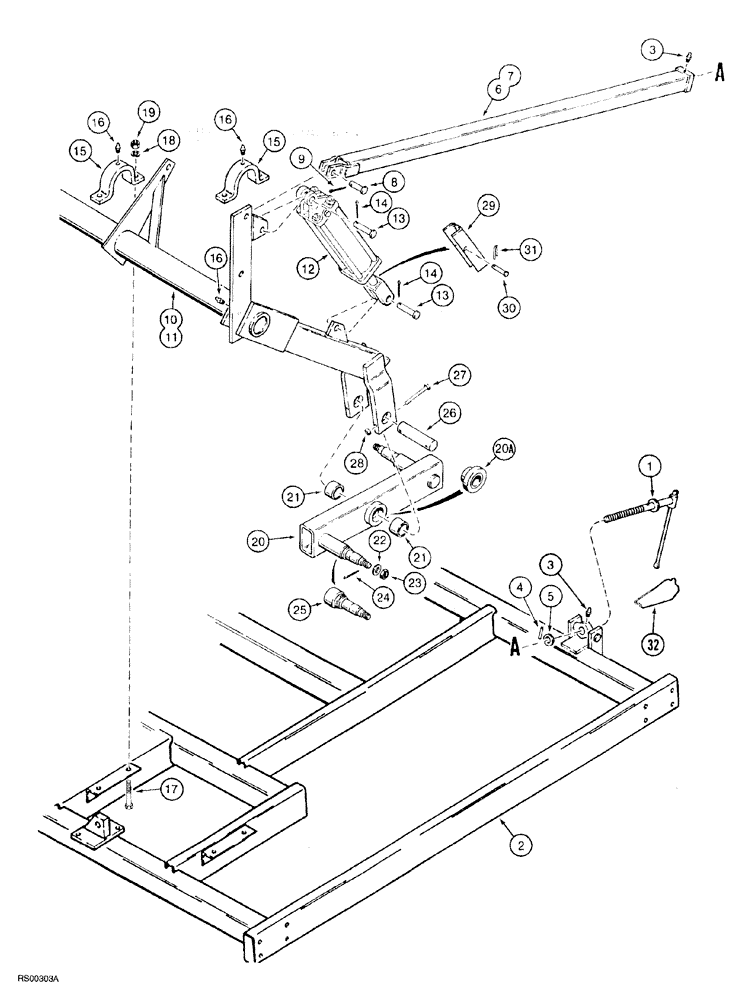

Запчасти Case IH 5700 (9-034) - MAIN FRAME AND DEPTH CONTROL, LEVEL LIFT MODELS, VERTICAL FOLD AND DOUBLE FOLD, (18) - MISCELLANEOUS

1

1284398C3

STUD

truss rod, depth control

2шт.

2

REF

INSTRUCTION

FRAME ASSEMBLY, main

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

4

38-32432

PIN,3/8" x 2", Coiled

3/8" x 2", Coiled

2шт.

5

495-21138

WASHER,1 1/4"

flat, 1-3/8 x 3 x 5/32 inch

2шт.

6

1284476C1

TUBE

truss rod, used on 5600 only

2шт.

7

1284470C2

TUBE,1860 mm Length

truss rod, used on 5700 only

2шт.

8

439-11639

HEADED PIN,1" x 2 7/16"

headed, 1 x 2-7/16 inch, grade 2

2шт.

9

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

10

91065C2

HYD ROCKSHAFT

SPARE PART main frame, 26 inch ground clearance, used on 5600 only

1шт.

11

91069C1

HYD ROCKSHAFT

SPARE PART main frame, 32 inch ground clearance, used on 5700 only

1шт.

12

1272485C92

CYLINDER ASSY.

4 (102) ID x 8 inch (203 mm) stroke (See Fig. 8-48)

2шт.

13

810751C1

PIN

1 x 3-1/2 inch long

4шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

15

97786C2

STRAP

CLAMP rockshaft

4шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

6шт.

17

326-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

8шт.

18

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

19

429-1012

NUT,3/4"-10, G8

hex, NC

8шт.

1284064C92

TUBE NUT

AXLE main frame

2шт.

20

NSS

NOT SOLD SEPARAT

AXLE main frame

1шт.

20

1337962C2

SUPPORT

axle bushing, replaces non serviceable, square type support used in some applications, part of axle pivot service kit 1337614C1

1шт.

21

89230C1

BUSHING,51.18mm ID x 63.15mm OD x 40mm L

axle, part of axle pivot service kit 1337614C1

1шт.

22

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

flat, special, hardened

2шт.

23

70120D

SLOTTED NUT,7/8"-14

hex, special, 7/8 inch NC

2шт.

25

95961C1

SPINDLE

axle, welds to axle assembly, service replacement

4шт.

26

1279363C2

PIN,50.8mm OD x 165mm L

pivot, part of axle pivot service kit 1337614C1

2шт.

27

326-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

Part of axle pivot service kit 1337614C1

4шт.

28

232-4136

LOCK NUT,3/8"-16, GC

Part of axle pivot service kit 1337614C1

4шт.

29

1337050C1

CHANNEL

transport lockout

2шт.

30

439-1544

HEADED PIN,5/16" x 2 3/4"

headed, 5/16 x 2-3/4 inch, grade 2

2шт.

31

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

locking

2шт.

32

1973010C1

RETAINER

spring

2шт.

1337614C1

PACKAGE

KIT axle pivot service, includes Refs. 20, 21, 26, 27 and 28

1шт.

24

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

2шт.
