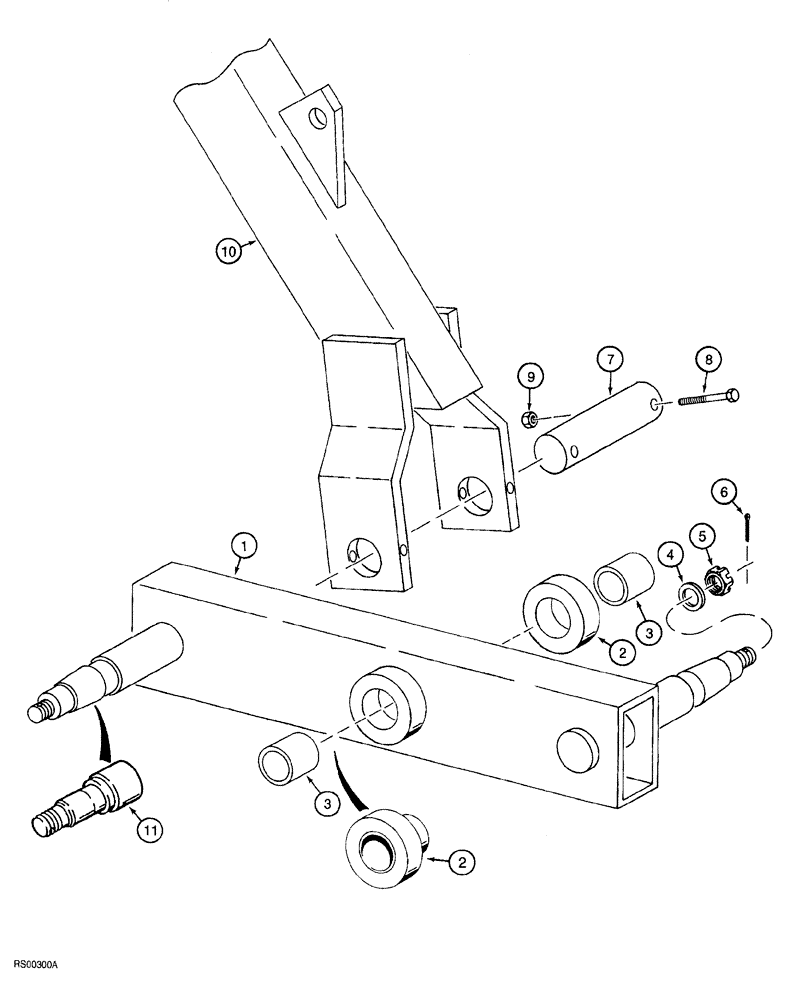

Запчасти Case IH 5700 (9-028) - MAIN FRAME AXLE, NON LEVEL LIFT MODELS, SINGLE & DOUBLE FOLD, 25 THRU 45 FOOT WIDE (18) - MISCELLANEOUS

1284064C92

TUBE NUT

axle, main frame

2шт.

1

NSS

NOT SOLD SEPARAT

AXLE main frame

1шт.

2

1337962C2

SUPPORT

axle bushing, replaces non serviceable, square type suport used in some applications, part of axle pivot service kit

1шт.

3

89230C1

BUSHING,51.18mm ID x 63.15mm OD x 40mm L

axle, part of axle pivot service kit

1шт.

4

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

flat, special, hardened, plated

2шт.

5

70120D

SLOTTED NUT,7/8"-14

hex, special, 7/8 inch NC

2шт.

6

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

2шт.

7

1279363C2

PIN,50.8mm OD x 165mm L

pivot, part of axle pivot service kit

2шт.

8

326-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

Part of axle pivot service kit

4шт.

9

232-4136

LOCK NUT,3/8"-16, GC

Part of axle pivot service kit

4шт.

10

REF

INSTRUCTION

ROCKSHAFT, main frame depth control, (See Fig. 9-26)

1шт.

11

95961C1

SPINDLE

axle, welds to axle assembly, service replacement

4шт.

1337614C1

PACKAGE

KIT axle pivot service, includes Refs. 2, 3, 7, 8 and 9, 12

1шт.

12

8-27990

INSTRUCTION

1шт.
