Запчасти Case IH 5700 (9-026) - MAIN FRAME DEPTH CONTROL ROCKSHAFT, NON LEVEL LIFT MODELS, SINGLE & DOUBLE FOLD,25 THRU 45 FOOT WIDE (18) - MISCELLANEOUS

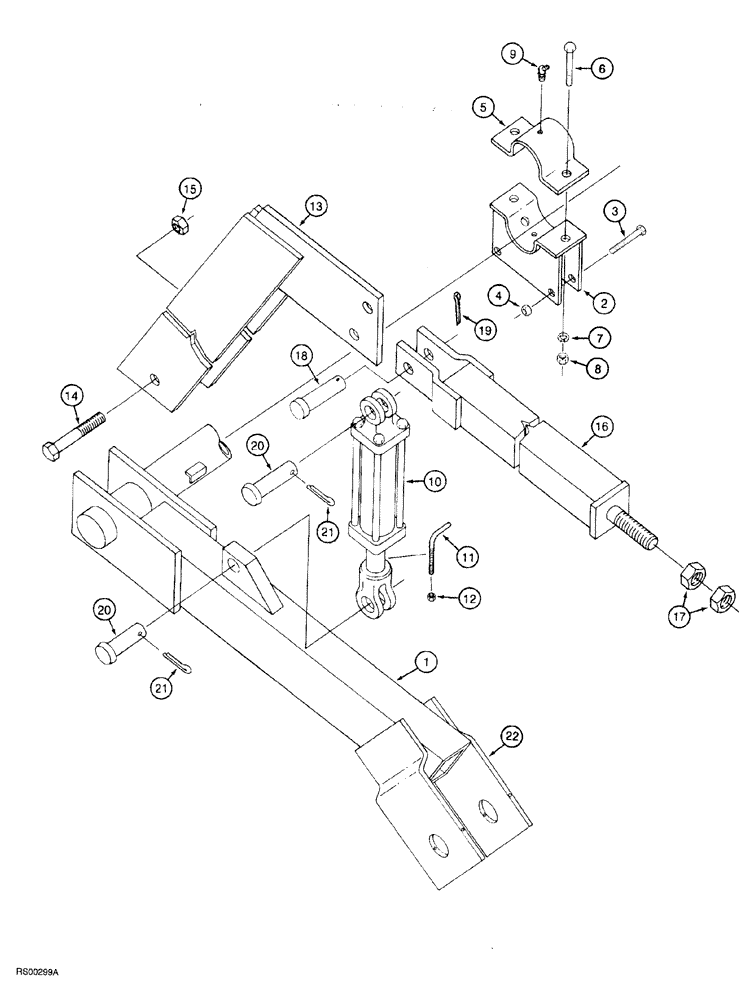

Схема запчастей Case IH 5700 - (9-026) - MAIN FRAME DEPTH CONTROL ROCKSHAFT, NON LEVEL LIFT MODELS, SINGLE & DOUBLE FOLD,25 THRU 45 FOOT WIDE (18) - MISCELLANEOUS
15
20
17
3
1
11
21
6
13
19
20
21
22
9
5
10
14
7
16
8
18
2
4
12

Артикул

Название

Примечание

Количество

1

1284044C1

SHAFT ASSY.

ROCKSHAFT, main frame depth control

1шт.

2

810645C1

SUPPORT

rockshaft

4шт.

3

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

8шт.

4

425-1010

NUT,5/8"-11, G5

8шт.

5

810179C1

CLAMP

rockshaft

4шт.

6

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

8шт.

7

492-11062

BEARING WASHER,5/8"

8шт.

8

425-1010

NUT,5/8"-11, G5

8шт.

9

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8 PT self tapping x 25/32 inch

4шт.

10

149950C92

CYLINDER

ASSEMBLY, 4-1/4 (108) ID x 8 inch (203 mm) stroke (See Fig. 8-50)

2шт.

1263435C91

ADJUSTMENT SCREW

adjusting

1шт.

11

NSS

NOT SOLD SEPARAT

LEVER cylinder adjusting

1шт.

12

425-145

JAM NUT,Jam, 5/16"-18, G5

hex jam, 5/16 inch NC

1шт.

13

810103C1

BRACE

cylinder support

2шт.

14

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

2шт.

15

425-1016

NUT,1"-8, G5

Hex

2шт.

16

813687C2

ROD

truss, depth control cylinder

2шт.

17

425-1016

NUT,1"-8, G5

Hex

4шт.

18

439-51648

HEADED PIN,1" x 3"

1 x 3 inch, truss rod

2шт.

19

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

20

810751C1

PIN

1 x 3-1/2 inch long, cylinder mounting

4шт.

21

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

22

1284022C1

LARGE PLATE

PLATE, LARGE rockshaft pivot

4шт.

Выбрано товаров: 23
