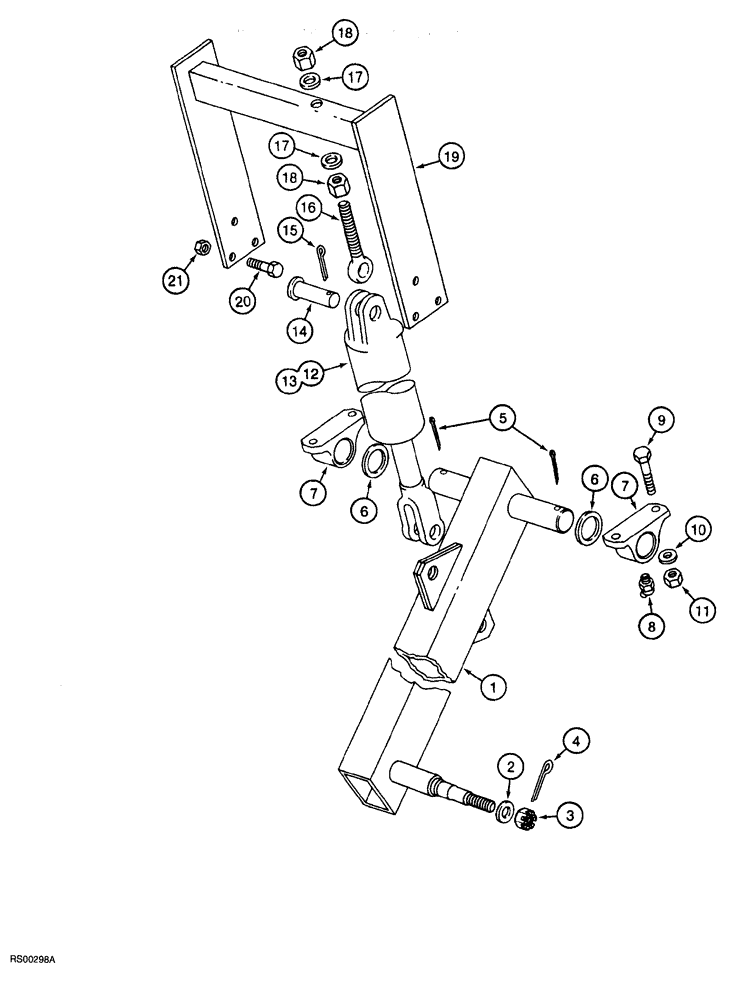

Запчасти Case IH 5700 (9-024) - OUTER AXLE AND DEPTH CONTROL CYLINDER MOUNTING, SINGLE WING MODELS (18) - MISCELLANEOUS

811061C91

AXLE

ASSEMBLY, outer

2шт.

1

NSS

NOT SOLD SEPARAT

AXLE outer

1шт.

2

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32 x 1/4 x 1/8 inch, special

1шт.

3

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF

1шт.

4

137204

COTTER PIN,1/8" x 1 1/2"

1шт.

5

432-2448

COTTER PIN,3/8" x 3"

3/8" x 3"

4шт.

6

S65975

WASHER,51.56mm ID x 69.85mm OD x 1.58mm Thk

flat, 2-1/32 x 2-3/4 x 1/16 inch, special

4шт.

7

597346R1

BEARING CARRIER

axle support

4шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

9

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

8шт.

10

492-11062

BEARING WASHER,5/8"

8шт.

11

425-1010

NUT,5/8"-11, G5

8шт.

12

1337459C2

CYLINDER

ASSEMBLY, 4 (102) ID x 8 inch (203 mm) stroke, main frame depth control (Internal seals are the only serviceable components of cylinder assembly, order 1337475C1 seal repair kit)

1шт.

13

813528C91

CYLINDER

ASSEMBLY, 3-3/4 (95) ID x 8 inch (203 mm) stroke, wing frame depth control (See Fig. 8-46 )

1шт.

14

810751C1

PIN

1 x 3-1/2 inch long, cylinder mounting

4шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

16

813200C1

BOLT,7/8" - 9 x 7.50"

eye, 7/8 NC x 7-1/2 inch, depth control cylinder

2шт.

17

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

flat, 29/32 x 1-3/4 x 7/64 inch, special

4шт.

18

129-109

NUT,7/8"-9, G5

4шт.

19

813605C2

SUPPORT

BRACKET mounting, depth control cylinder, left hand, used on 5600 single wing chisel plows

1шт.

19

813606C2

SUPPORT

BRACKET mounting, depth control cylinder, right hand, used on 5600 single wing chisel plows

1шт.

19

813556C1

SUPPORT

SPARE PART BRACKET mounting, depth control cylinder, left hand, used on 5700 single wing chisel plows

1шт.

19

813557C1

SUPPORT

BRACKET mounting, depth control cylinder, right hand, used on 5700 single wing chisel plows

1шт.

20

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2 NC x 3 inch

12шт.

21

425-108

NUT,1/2" - 13, Gr 5

12шт.
