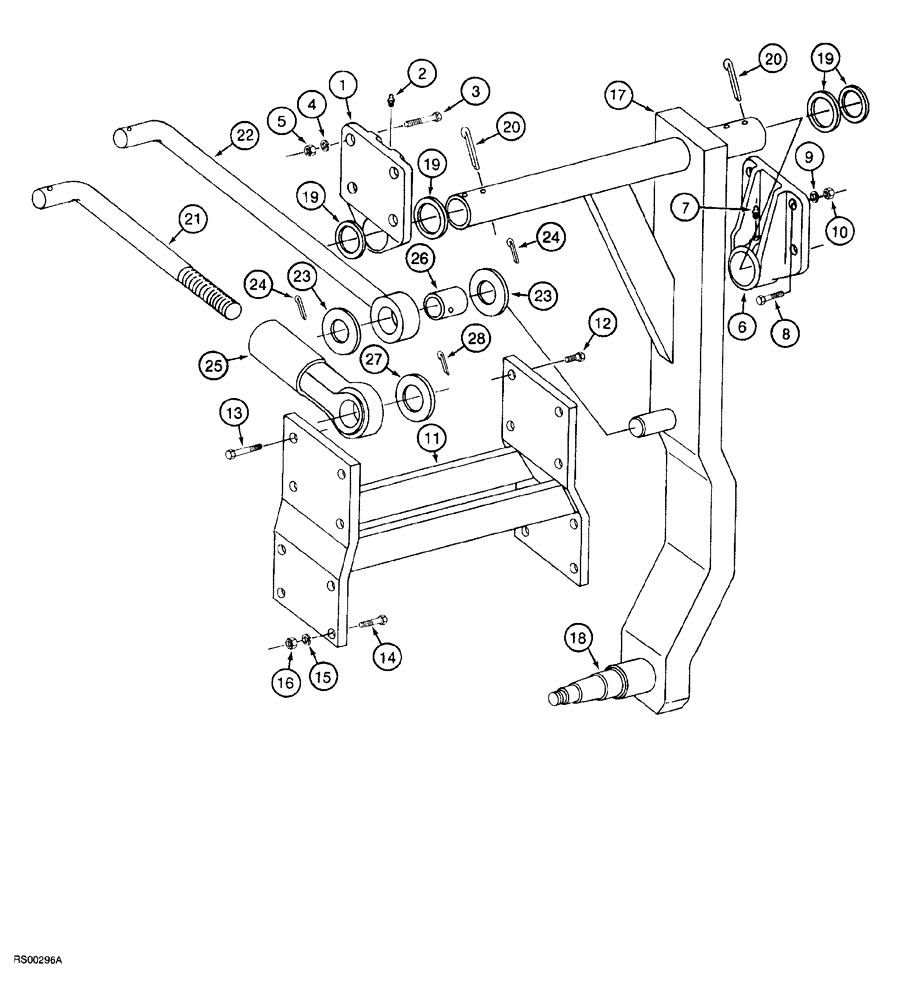

Запчасти Case IH 5700 (9-020) - AXLE AND MOUNTING, ALL TRAIL BEHIND MODELS (18) - MISCELLANEOUS

1

608315R1

SUPPORT

axle, long

2шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

3

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

8шт.

4

492-11062

BEARING WASHER,5/8"

8шт.

5

425-1010

NUT,5/8"-11, G5

8шт.

6

608314R1

SUPPORT

axle, short

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

8

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

9

492-11062

BEARING WASHER,5/8"

8шт.

10

425-1010

NUT,5/8"-11, G5

8шт.

11

609135R93

HANGER

axle, used on 5700 trail behind plows, 10 foot and 13 foot wide

2шт.

12

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch, if used

8шт.

13

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex, 5/8 NC x 3-1/4 inch, if used

8шт.

14

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

If used

8шт.

15

492-11062

BEARING WASHER,5/8"

If used

24шт.

16

425-1010

NUT,5/8"-11, G5

If used

24шт.

608316R91

AXLE

SPARE PART ASSEMBLY, wheel

2шт.

17

NSS

NOT SOLD SEPARAT

AXLE wheel

1шт.

18

608321R1

SPINDLE

axle

1шт.

19

S65975

WASHER,51.56mm ID x 69.85mm OD x 1.58mm Thk

flat, 2-1/32 x 2-3/4 x 1/16 inch, special

8шт.

20

132-187

COTTER PIN,5/16" x 3"

8шт.

21

608324R1

BAR

ROD adjustable lift, used on model 5600 trail behind plows

1шт.

21

609127R1

ROD

SPARE PART ROD adjustable lift, used on model 5700 trail behind plows

1шт.

22

608325R2

ROD

SPARE PART ROD rigid lift, used on model 5600 trail behind plows, no longer available (Order 1284015C1 rod and 112886C1 bushing)

1шт.

22

1284015C1

ROD

rigid lift, used on model 5600 trail behind plows

1шт.

22

609128R1

ROD

SPARE PART ROD rigid lift, used on model 5700 trail behind plows, no longer available (Order 1284013C1 rod and 112886C1 bushing)

1шт.

22

1284013C1

ROD

rigid lift, used on model 5700 trail behind plows

1шт.

23

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

flat, 1 -9/32 x 2 x 3/64 inch

2шт.

24

432-1640

COTTER PIN,1/4" x 2 1/2"

1/4" x 2 1/2"

2шт.

25

608322R2

EYE

SPARE PART LINK lift, no longer available (Order 1284014C1 link and 112886C1 bushing)

1шт.

25

1284014C1

EYE

LINK lift

1шт.

26

608323R2

BUSHING,32.16mm ID x 41.27mm OD x 40.89mm L

lift rod, used with 608325R2 and 609128R1 rod and 608322R2 link

2шт.

26

112886C1

BUSHING

tension, used with 1284013C1 and 1284015C1 rod and 1284014C1 link

2шт.

27

495-81088

WASHER,1.66" ID x 2.25" OD x 0.06" Thk

flat, 1 -21/32 x 2-1/4 x 3/64 inch

2шт.

28

432-1640

COTTER PIN,1/4" x 2 1/2"

1/4" x 2 1/2"

2шт.
