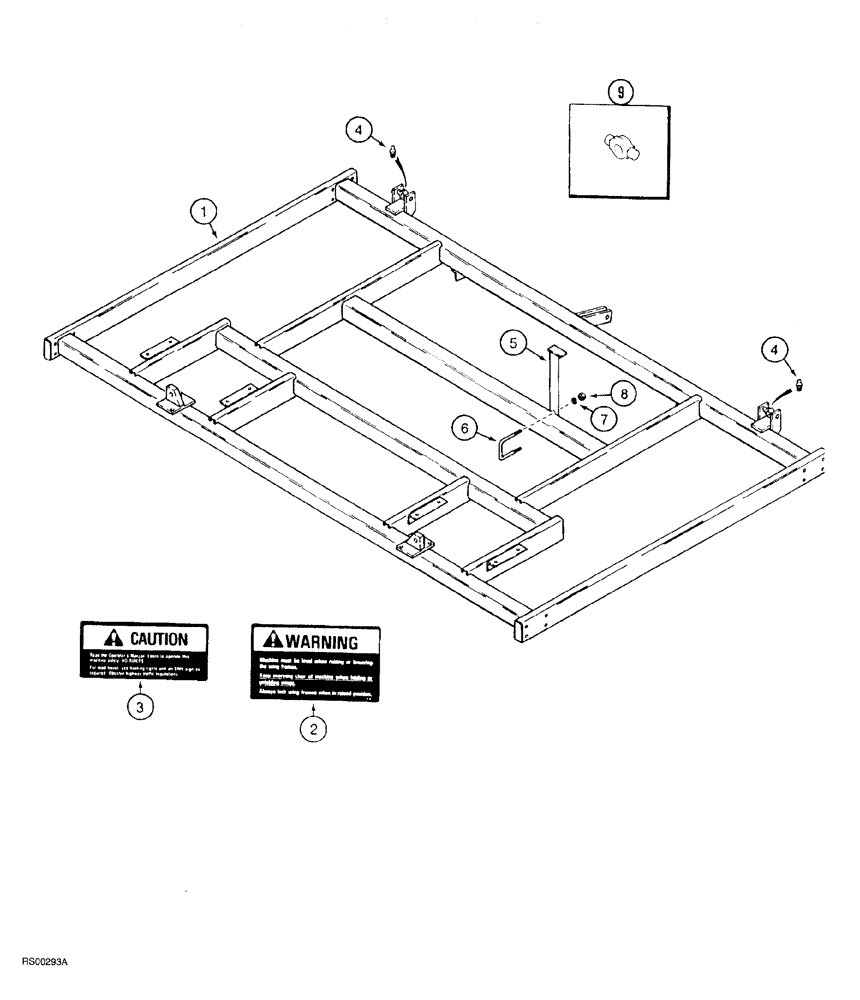

Запчасти Case IH 5700 (9-014) - MAIN FRAME, LEVEL LIFT MODELS, FLAT FOLD (18) - MISCELLANEOUS

1337977C1

FRAME ASSY

main, level lift, flat fold chisel plow

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME main, level lift, flat fold chisel plow

1шт.

2

810170C2

PRODUCT GRAPHIC

DECAL Warning, wing frame (See Fig. 9-196)

2шт.

3

220321A1

WARNING DECAL

Warning, read the operator's manual (See Fig. 9-196)

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

5

812343C1

SUPPORT

wing stop, used on 23 through 27 foot wide plows

2шт.

6

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8 inch NC

2шт.

7

492-11062

BEARING WASHER,5/8"

4шт.

8

425-1010

NUT,5/8"-11, G5

4шт.

9

60134C2

TRUNNION

hitch crank, service replacement

2шт.
