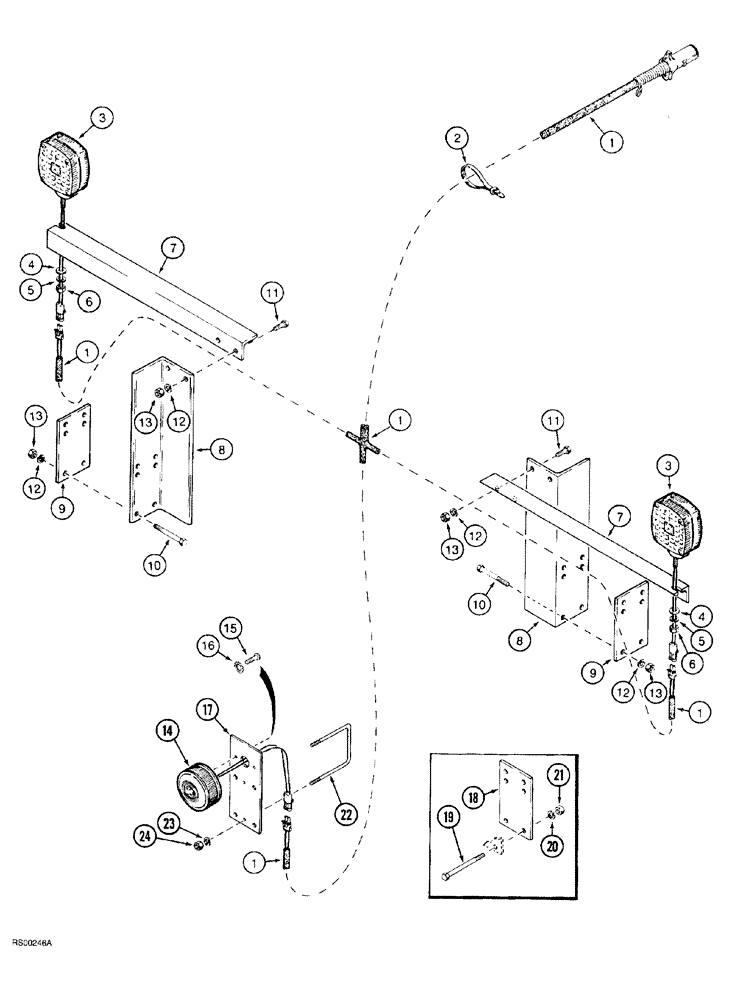

Запчасти Case IH 5700 (4-004) - WIRING HARNESS AND LAMP MOUNTING LEVEL LIFT MODELS, VERTICAL FOLD AND DOUBLE FOLD (04) - ELECTRICAL SYSTEMS

1

1969327C1

HARNESS

wiring, lamps

1шт.

2

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie, wiring harness

14шт.

3

91913C91

LIGHT

LAMP turn signal (See Fig. 4-6)

2шт.

4

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

6

425-118

NUT,1/2"-20, G5

2шт.

7

1969260C2

ANGLE

BRACKET turn signal lamp mounting

2шт.

8

1969261C1

ANGLE

SUPPORT turn signal lamp

2шт.

9

1969263C1

LARGE PLATE

PLATE, LARGE mounting

2шт.

10

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

8шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

13

425-108

NUT,1/2" - 13, Gr 5

12шт.

14

91986C91

LIGHT

LAMP ASSEMBLY, tail (See Fig. 4-8)

1шт.

15

261-14512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

self tapping, pan Phillips, No. 10 NC x 3/4 inch

2шт.

17

1969262C2

LARGE PLATE

PLATE, LARGE tail lamp mounting

1шт.

18

1969263C1

LARGE PLATE

PLATE, LARGE mounting

1шт.

19

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

hex, 1/2 NC x 5 inch

4шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

21

425-108

NUT,1/2" - 13, Gr 5

4шт.

22

810099C1

BOLT,U, 1/4" - 20 x 4.75"

U- mounting bar

1шт.

23

492-11025

LOCK WASHER,1/4"

2шт.

24

425-104

NUT,1/4"-20, Cl 5

2шт.

16

493-81000

LOCK WASHER,Ext-Int Tooth, #10

(3/16")

2шт.
