Запчасти Case IH 5700 (9-012) - MAIN FRAME, NON LEVEL LIFT MODELS, SINGLE AND DOUBLE FOLD, 33 FOOT THROUGH 45 FOOT WIDE (18) - MISCELLANEOUS

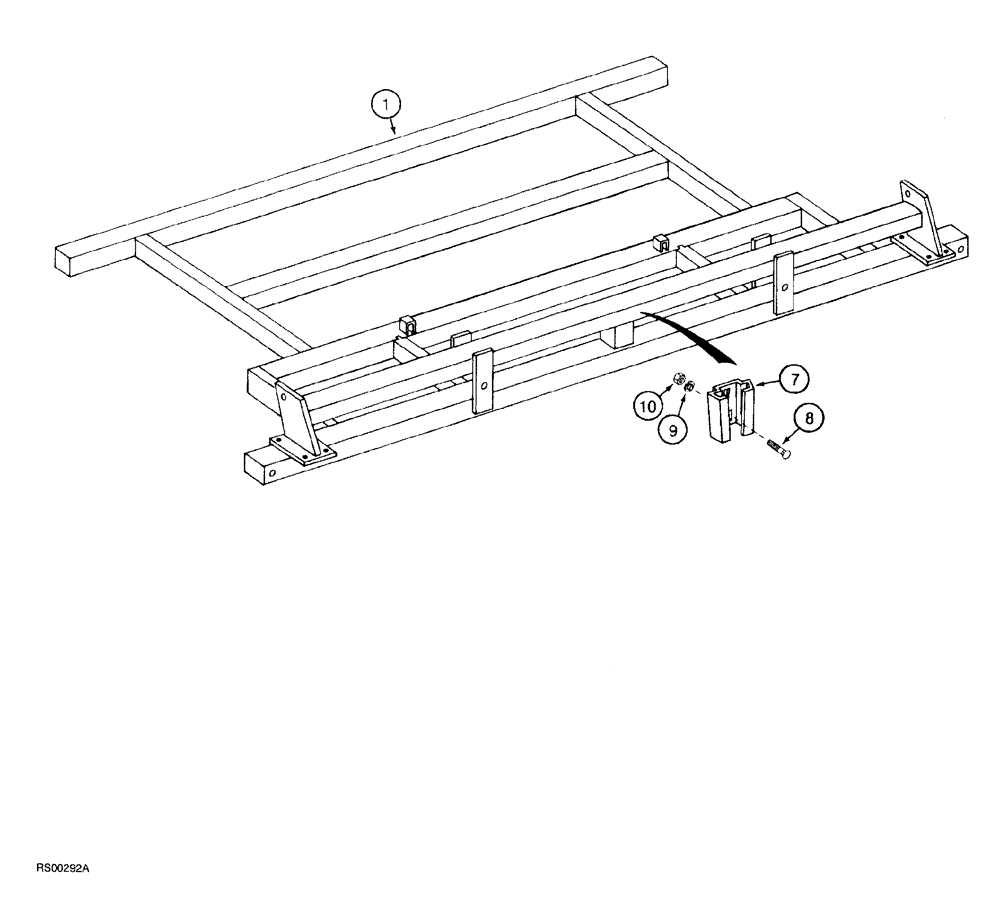

Схема запчастей Case IH 5700 - (9-012) - MAIN FRAME, NON LEVEL LIFT MODELS, SINGLE AND DOUBLE FOLD, 33 FOOT THROUGH 45 FOOT WIDE (18) - MISCELLANEOUS
8
1
7
10
9

Артикул

Название

Примечание

Количество

812545C95

FUNNEL

FRAME ASSEMBLY, main, 5600 wing type chisel plow

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME main, 5600 wing type chisel plow

1шт.

2

220321A1

WARNING DECAL

Warning, read the operator's manual, not shown (See Fig. 9-196)

1шт.

3

810170C2

PRODUCT GRAPHIC

DECAL Warning, wing frame, not shown (See Fig. 9-196)

1шт.

4

1284365C2

REFLECTOR

amber, not shown

1шт.

5

1284374C1

REFLECTOR,Reflector Red

red, not shown

2шт.

6

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

Self tapping, not shown

4шт.

7

A59457

BRACKET

mounting, slow moving vehicle emblem

1шт.

8

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

9

492-11031

LOCK WASHER,5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

2шт.

Выбрано товаров: 11
