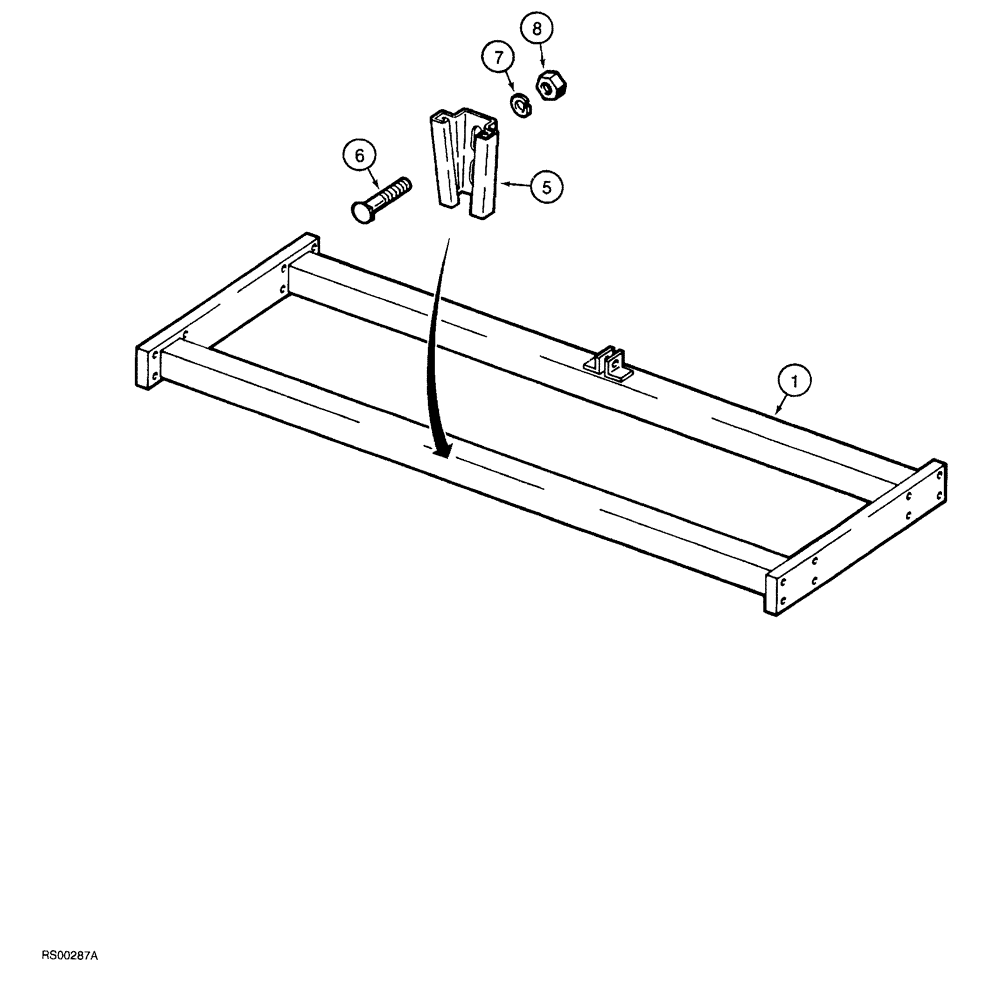

Запчасти Case IH 5700 (9-003) - MAIN FRAME, 5600 DIRECT MOUNTED MODELS, TWO RANK (18) - MISCELLANEOUS

811427C92

FUNNEL

FRAME ASSEMBLY, main, 5600 direct mounted chisel plow, 7 foot wide

1шт.

811428C92

FUNNEL

FRAME ASSEMBLY, main, 5600 direct mounted chisel plow, 11 foot wide

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME main, 5600 direct mounted chisel plow, 7 foot wide

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME main, 5600 direct mounted chisel plow, 11 foot wide

1шт.

2

1254170C1

DECAL

Caution, read the operator's manual, not shown (See Fig.9-196)

1шт.

3

1284365C2

REFLECTOR

amber, not shown

1шт.

4

1284374C1

REFLECTOR,Reflector Red

red, not shown

2шт.

5

A59457

BRACKET

mounting, slow moving vehicle emblem

1шт.

6

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT carriage, 5/16 NC x 3/4 inch

2шт.

7

492-11031

LOCK WASHER,5/16"

2шт.

8

425-105

NUT,5/16"-18, G5

2шт.
