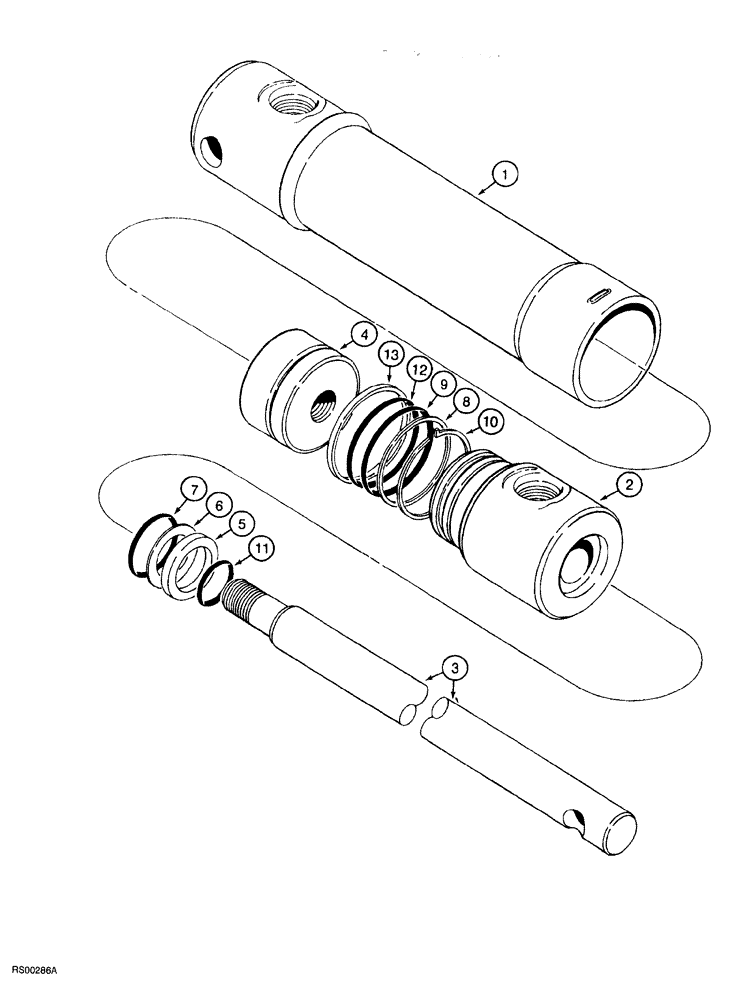

Запчасти Case IH 5700 (8-076) - CYLINDER ASSEMBLY - 811998C91, 1-1/2 ID X 4 INCH STROKE (08) - HYDRAULICS

811998C91

CYLINDER ASSY.

1-1/2 (38) ID x 4 inch (102 mm) stroke (order cylinder assembly 1286364C91)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder assembly

1шт.

2

812348C1

END

GLAND cylinder

1шт.

3

812349C1

ROD

piston

1шт.

4

812350C1

PISTON

cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

6

NSS

NOT SOLD SEPARAT

RING backup, piston rod O-ring

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

8

NSS

NOT SOLD SEPARAT

RING backup, gland O-ring

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING gland

1шт.

10

NSS

NOT SOLD SEPARAT

RING locking, gland

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

13

NSS

NOT SOLD SEPARAT

RING wear, piston

1шт.

812351C1

SEAL KIT

seal, includes Refs. 5 thru 13

1шт.
