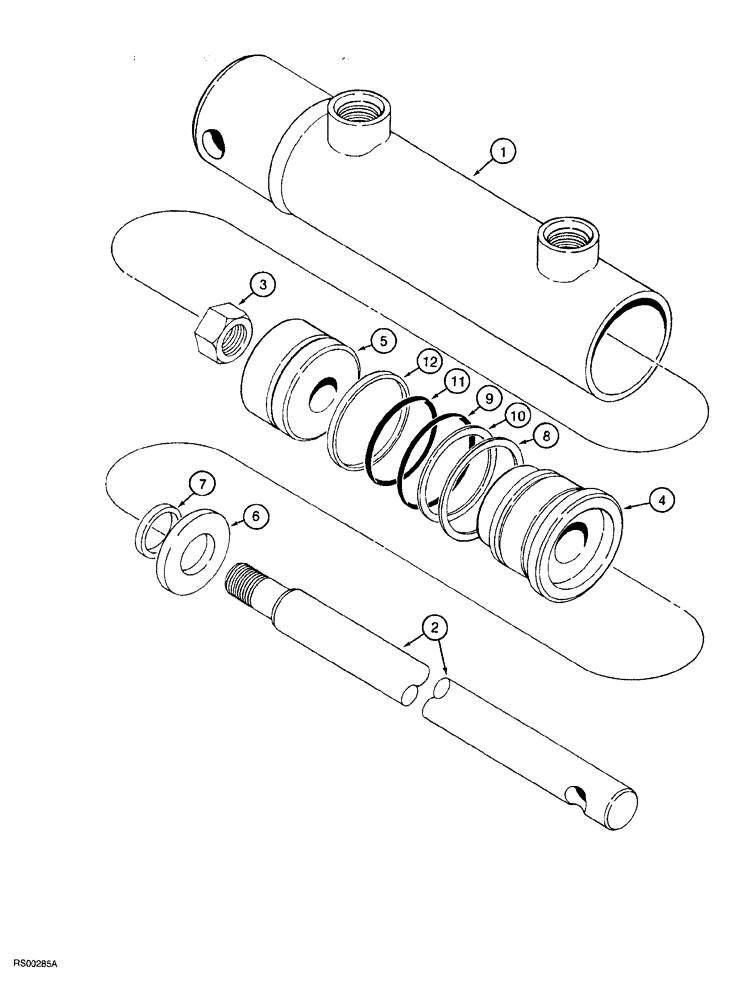

Запчасти Case IH 5700 (8-074) - CYLINDER ASSEMBLY - 1286364C91, 1-1/2 ID X 4 INCH STROKE (08) - HYDRAULICS

1286364C91

CYLINDER ASSY.

1-1/2 (38) ID x 4 inch (102 mm) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder assembly

1шт.

2

85262C1

ROD

piston

1шт.

3

9411648

LOCK NUT,1/2"-20, GC

1шт.

4

85264C1

HEAD

GLAND cylinder

1шт.

5

85263C1

PISTON

cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER piston rod, part of seal kit 85020C1

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL U-cup, piston rod, part of seal kit 85020C1

1шт.

8

NSS

NOT SOLD SEPARAT

RING retaining, gland, part of seal kit 85020C1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING gland, part of seal kit 85020C1

1шт.

10

NSS

NOT SOLD SEPARAT

RING backup, gland O-ring, part of seal kit 85020C1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING piston, part of seal kit 85020C1

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL piston, part of seal kit 85020C1

1шт.

85020C1

SEAL KIT

KIT, includes Refs. 6 thru 12

1шт.
