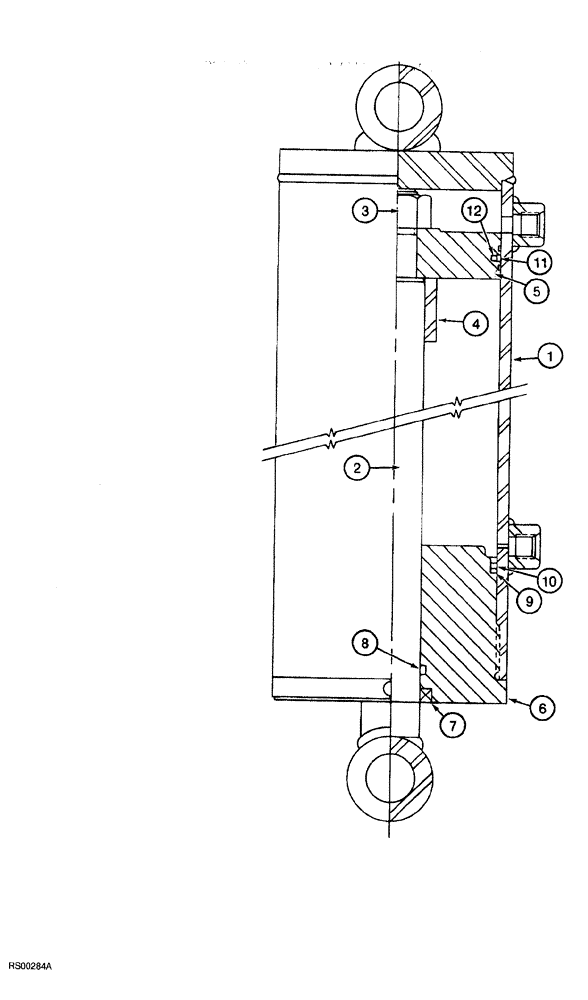

Запчасти Case IH 5700 (8-072) - CYLINDER ASSEMBLY - 1282421C91, 4-1/2 ID X 34 INCH STROKE (08) - HYDRAULICS

1282421C91

CYLINDER ASSY.

4-1/2 (114) ID x 34 inch (864mm) stroke

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

85298C1

ROD ASSY.

piston

1шт.

3

232-46314

LOCK NUT,7/8"-14, GC

1шт.

4

85300C1

SPACER

piston rod stop

1шт.

5

85299C1

PISTON

cylinder

1шт.

6

85301C1

HEAD

GLAND cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL U-cup, piston rod

1шт.

9

NSS

NOT SOLD SEPARAT

RING backup, gland O-ring

1шт.

10

NSS

NOT SOLD SEPARAT

0-RING gland

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

12

NSS

NOT SOLD SEPARAT

0-RING piston

1шт.

85124C1

SEAL KIT

seal, includes Refs. 7 thru 12

1шт.
