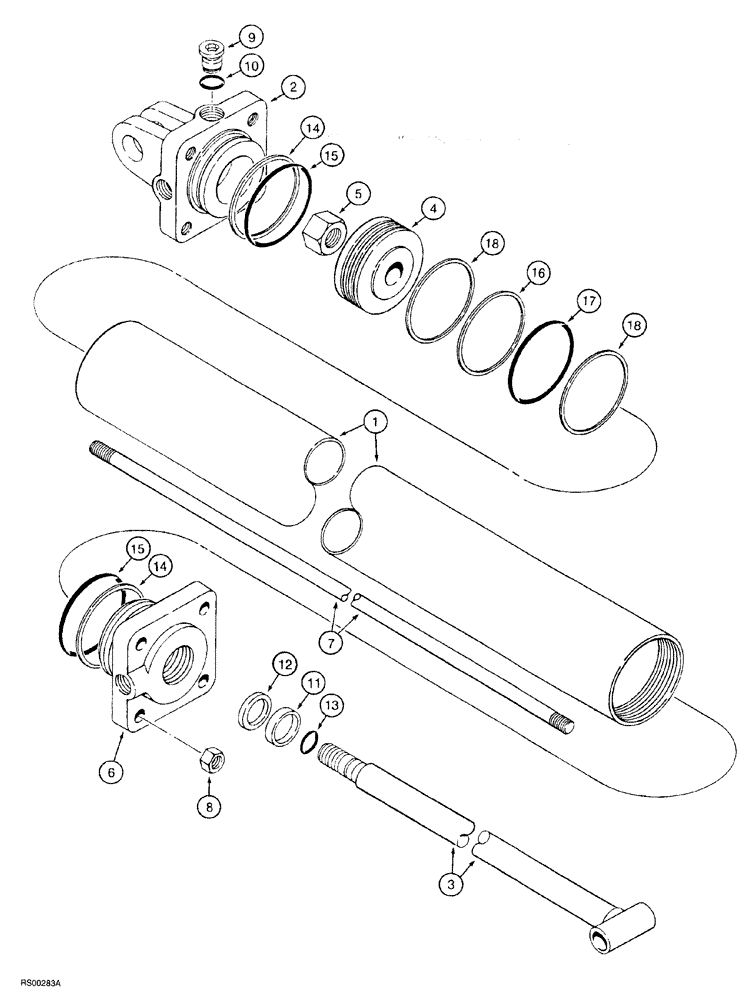

Запчасти Case IH 5700 (8-070) - CYLINDER ASSEMBLY - 1954089C1, 4-1/2 ID X 34 INCH STROKE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1954089C1
CYLINDER
ASSEMBLY, 4-1/2 (114) ID x 34 inch (864 mm) stroke
1шт.
1
NSS
NOT SOLD SEPARAT
TUBE cylinder
1шт.
2
1954155C1
JACK HEAD
CAP end, cylinder
1шт.
3
1954156C1
ROD
piston
1шт.
4
1954189C1
JACK PISTON
cylinder
1шт.
5
232-46116
LOCK NUT,1"-14, GC
1шт.
6
1954158C1
HEAD
GLAND cylinder
1шт.
7
1954159C1
BOLT,3/4" - 10 x 39.812"
tie, cylinder
4шт.
8
425-1012
NUT,3/4"-10, G5
hex, 3/4 inch NC
4шт.
9
71100209
PLUG,Hex Soc, 3/4"-16 ORB
1шт.
10
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
part of seal kit 1954188C1
1шт.
11
NSS
NOT SOLD SEPARAT
WIPER piston rod, part of seal kit 1954188C1
1шт.
12
NSS
NOT SOLD SEPARAT
SEAL U-cup, piston rod, part of seal kit 1954188C1
1шт.
13
NSS
NOT SOLD SEPARAT
O-RING piston rod, part of seal kit 1954188C1
1шт.
14
NSS
NOT SOLD SEPARAT
RING backup, end cap and gland O-ring, part of seal kit 1954188C1
2шт.
15
NSS
NOT SOLD SEPARAT
O-RING end cap and gland, part of seal kit 1954188C1
2шт.
16
NSS
NOT SOLD SEPARAT
SEAL piston, part of seal kit 1954188C1
1шт.
17
NSS
NOT SOLD SEPARAT
O-RING piston, part of seal kit 1954188C1
1шт.
18
NSS
NOT SOLD SEPARAT
RING wear, piston, part of seal kit 1954188C1
2шт.
1954188C1
SEAL KIT
seal, includes Refs. 10 thru 18
1шт.
Выбрано товаров: 20
