(8-068) - CYLINDER ASSEMBLY - 810662C91, 4 ID X 34 INCH STROKE

Запчасти Case IH 5700 (8-068) - CYLINDER ASSEMBLY - 810662C91, 4 ID X 34 INCH STROKE (08) - HYDRAULICS

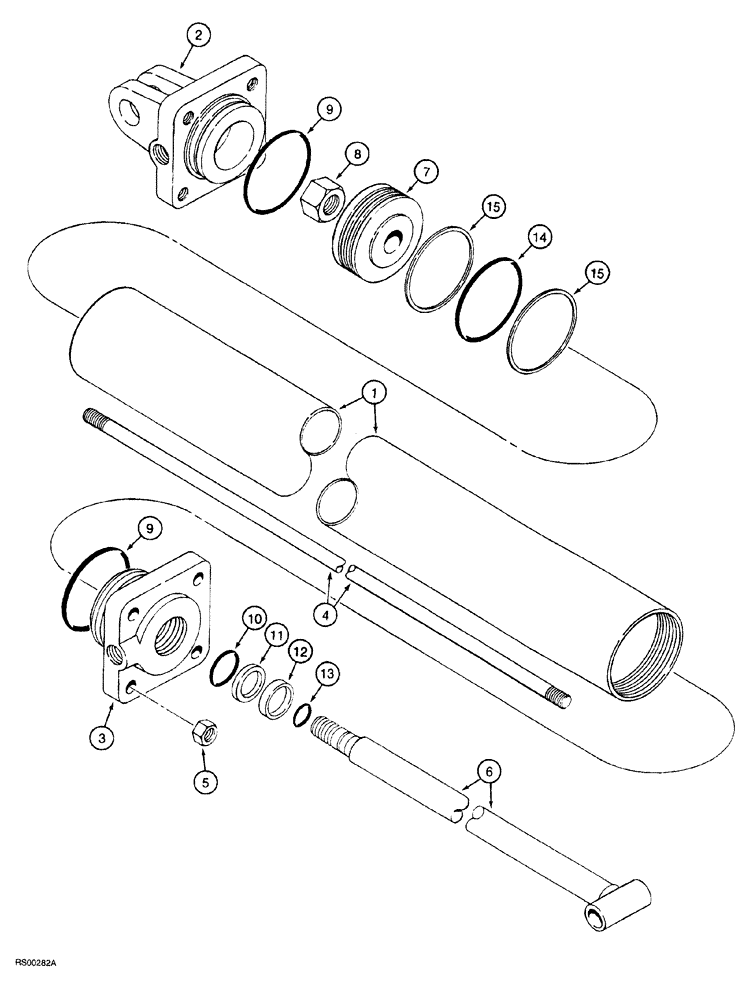

Схема запчастей Case IH 5700 - (8-068) - CYLINDER ASSEMBLY - 810662C91, 4 ID X 34 INCH STROKE (08) - HYDRAULICS
13
5
2
15
11
9
12
15
6
10
9
7
1
14
4
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

810662C91

CYLINDER

ASSEMBLY, 4 (102) ID x 34 inch (864 mm) stroke (Order cylinder assemvly 224796C92)

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

813374C1

END

CAP, cylinder

1шт.

3

813375C1

END

GLAND cylinder

1шт.

4

813377C1

ROD,5/8" - 18 x 39.0"

cylinder tie

4шт.

5

425-1110

NUT,5/8"-18, G5

4шт.

6

813378C1

ROD

piston

1шт.

7

813379C1

PISTON

cylinder

1шт.

8

231-46114

LOCK NUT,7/8"-14, GB

hex, self locking, 7/8 inch NF

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING end cap and gland, part of seal kit 813389C91

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING piston rod, large, part of seal kit 813389C91

1шт.

11

NSS

NOT SOLD SEPARAT

RING backup, large piston rod O-ring, part of seal kit 813389C91

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER piston rod, part of seal kit 813389C91

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING piston rod, small, part of seal kit 813389C91

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING piston, part of seal kit 813389C91

1шт.

15

NSS

NOT SOLD SEPARAT

RING backup, piston O-ring, part of seal kit 813389C91

2шт.

813389C91

SEAL KIT

seal, includes Refs. 9 thru 15, part of seal kit 813389C91

1шт.
