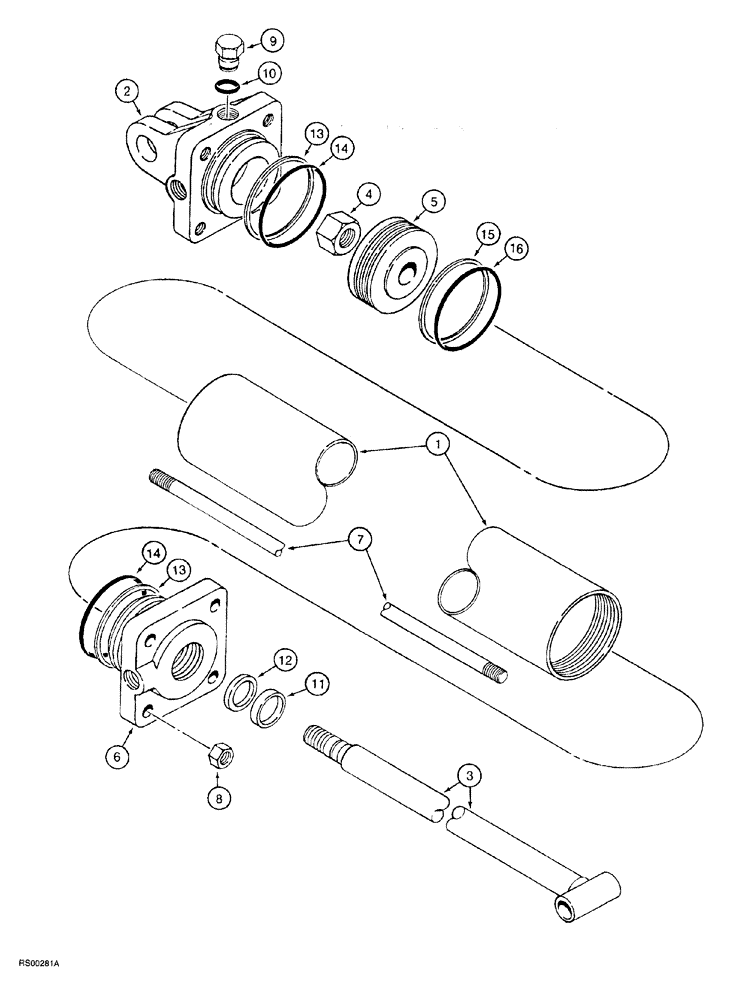

Запчасти Case IH 5700 (8-066) - CYLINDER ASSEMBLY - 224795C92, 4 ID X 34 INCH STROKE (08) - HYDRAULICS

224795C92

CYLINDER

ASSEMBLY, 4 (102) ID x 34 inch (864 mm) stroke

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

1272919C1

CYLINDER HEAD

CAP end

1шт.

3

1285955C1

ROD

piston

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

92521C1

PISTON

cylinder

1шт.

6

1285881C1

HEAD

GLAND cylinder

1шт.

7

224798C1

BOLT,5/8" - 11 x 39.2"

cylinder tie

4шт.

8

425-1010

NUT,5/8"-11, G5

4шт.

9

214389

PLUG,3/4" - 16 ORB

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

part of seal kit 1272883C3

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER piston rod, part of seal kit 1272883C3

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL piston rod, part of seal kit 1272883C3

1шт.

13

NSS

NOT SOLD SEPARAT

RING backup, end cap and gland O-ring, part of seal kit 1272883C3

2шт.

14

NSS

NOT SOLD SEPARAT

O-RING end cap and gland, part of seal kit 1272883C3

2шт.

15

NSS

NOT SOLD SEPARAT

SEAL piston, part of seal kit 1272883C3

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING piston, part of seal kit 1272883C3

1шт.

1272883C3

SEAL KIT

KIT, includes Refs. 10 thru 16

1шт.
