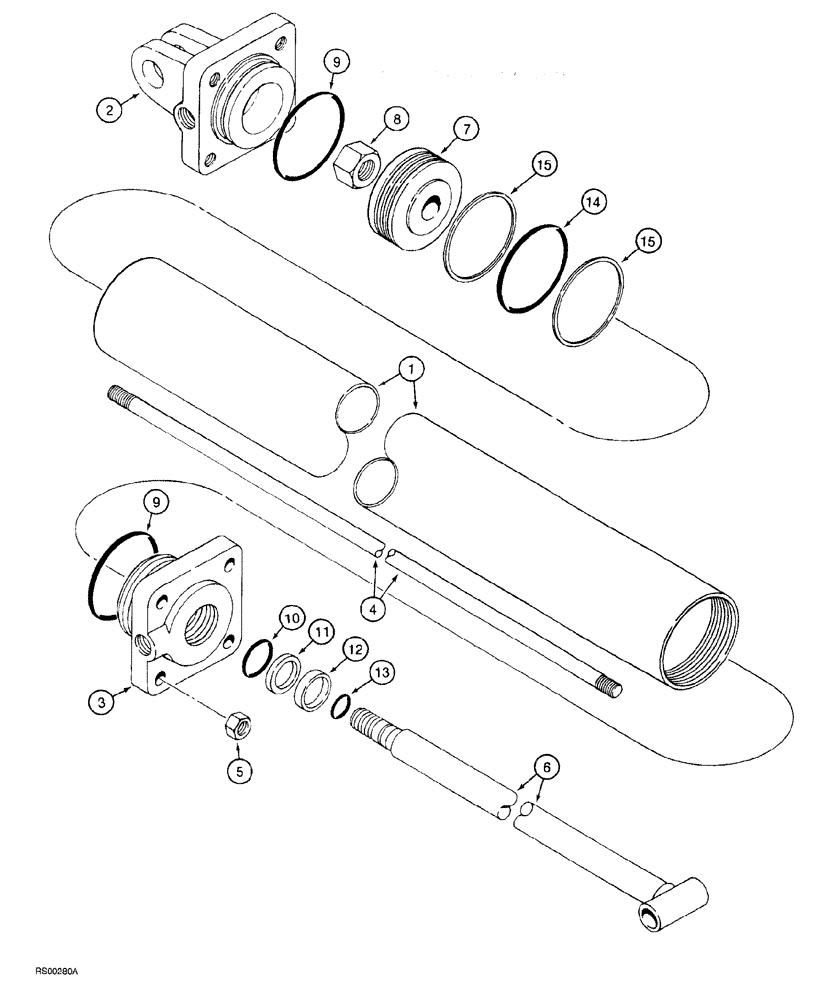

Запчасти Case IH 5700 (8-064) - CYLINDER ASSEMBLY - 810665C01, 3-1/2 ID X 34 INCH STROKE (08) - HYDRAULICS

810665C91

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 34 inch (866 mm) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

813419C1

END

CAP

1шт.

3

813429C1

END

GLAND cylinder

1шт.

4

813430C1

ROD,1/2" - 13 x 38 1/4"

BOLT cylinder tie

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

4шт.

6

813431C1

ROD

piston

1шт.

7

813434C1

PISTON

cylinder

1шт.

8

231-46114

LOCK NUT,7/8"-14, GB

hex, self locking, 7/8 inch NF

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING end cap and gland, part of seal kit 813435C1

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING piston rod, large, part of seal kit 813435C1

1шт.

11

NSS

NOT SOLD SEPARAT

RING backup, large piston rod O-ring, part of seal kit 813435C1

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER piston, part of seal kit 813435C1

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING piston rod, small, part of seal kit 813435C1

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING piston, part of seal kit 813435C1

1шт.

15

NSS

NOT SOLD SEPARAT

RING backup, piston O-ring, part of seal kit 813435C1

1шт.

813435C1

KIT seal, includes Refs. 9 thru 15

1шт.
