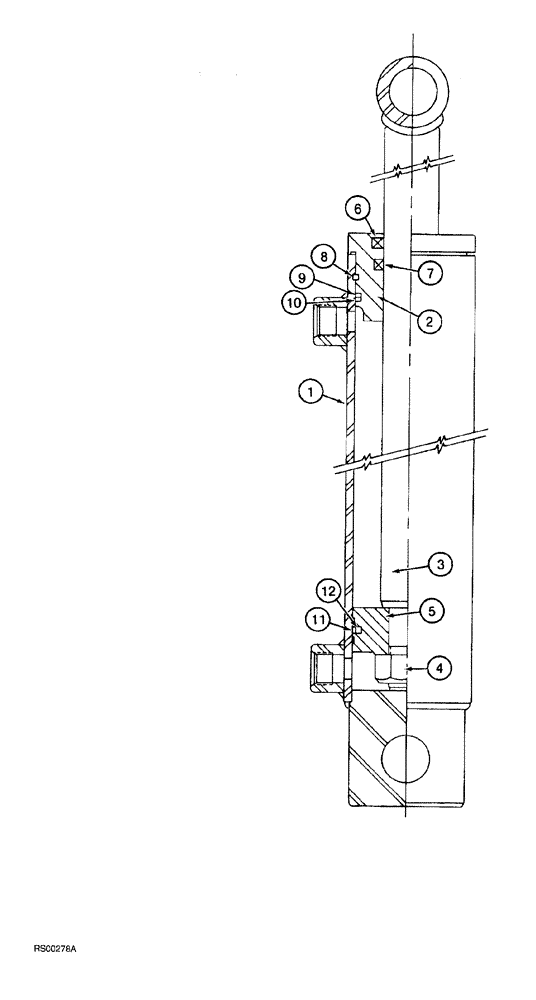

Запчасти Case IH 5700 (8-060) - CYLINDER ASSEMBLY - 1286311C91, 2-1/2 ID X 34 INCH STROKE (08) - HYDRAULICS

1286311C91

CYLINDER ASSY.

2-1/2 (64) ID x 34 inch (864 mm) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

85260C1

HEAD

GLAND cylinder

1шт.

3

85259C1

ROD ASSY.

SPARE PART piston

1шт.

4

232-46112

LOCK NUT,3/4"-16, GC

1шт.

5

85261C1

PISTON

SPARE PART cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER piston rod, part if seal kit 85023C2

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL U-cup, piston rod, part if seal kit 85023C2

1шт.

8

NSS

NOT SOLD SEPARAT

RING retaining, gland, part if seal kit 85023C2

1шт.

9

NSS

NOT SOLD SEPARAT

RING backup, gland O-ring, part if seal kit 85023C2

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING gland, part if seal kit 85023C2

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING piston, part if seal kit 85023C2

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL piston, part if seal kit 85023C2

1шт.

85023C2

SEAL KIT

seal, includes Refs. 6 thru 12

1шт.
