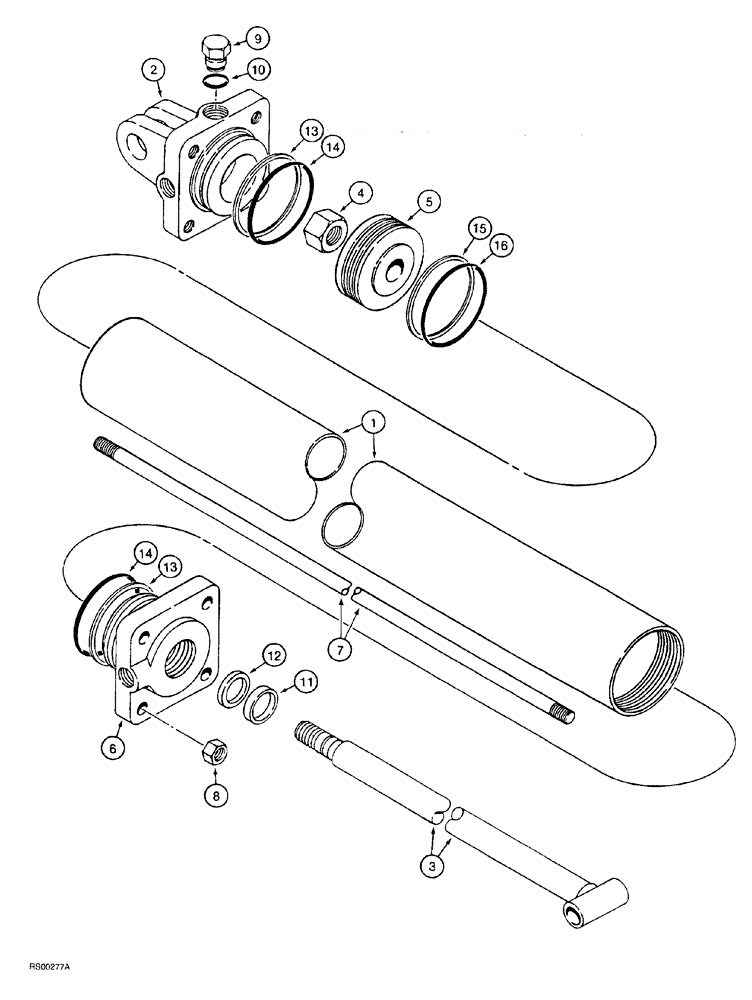

Запчасти Case IH 5700 (8-058) - CYLINDER ASSEMBLY - 224787C91, 3-1/2 ID X 18 INCH STROKE (08) - HYDRAULICS

224787C91

CYLINDER ASSY.

3-1/2 (89) ID x 18 inch (457 mm) stroke

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

1272825C1

HEAD

cylinder, two ports

1шт.

3

224788C1

ROD ASSY.

piston

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

145422C2

PISTON

cylinder

1шт.

6

1272826C1

HEAD

GLAND cylinder

1шт.

7

1285716C1

BOLT

cylinder tie

4шт.

8

425-108

NUT,1/2" - 13, Gr 5

4шт.

9

214389

PLUG,3/4" - 16 ORB

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

part of seal kit 84919C2

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER piston rod, part of seal kit 84919C2

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL piston rod, part of seal kit 84919C2

1шт.

13

NSS

NOT SOLD SEPARAT

RING backup, end cap and gland O-ring, part of seal kit 84919C2

2шт.

14

NSS

NOT SOLD SEPARAT

O-RING end cap and gland, part of seal kit 84919C2

2шт.

15

NSS

NOT SOLD SEPARAT

SEAL piston, part of seal kit 84919C2

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING piston, part of seal kit 84919C2

1шт.

84919C2

GASKET KIT

seal, includes Refs. 10 thru 16

1шт.
