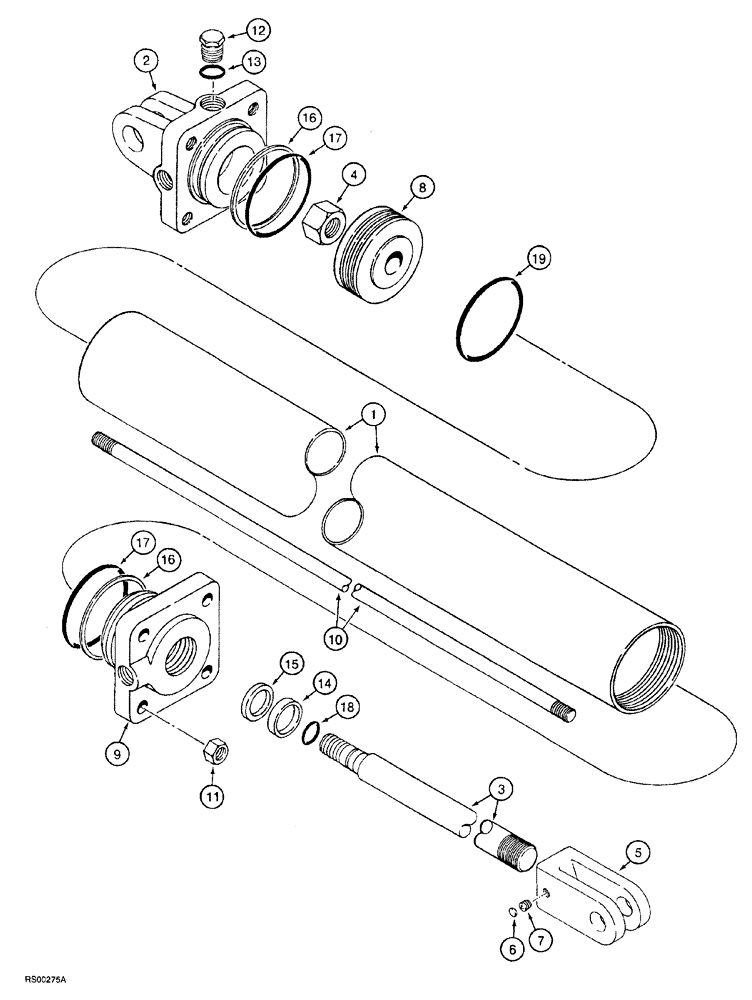

Запчасти Case IH 5700 (8-054) - CYLINDER ASSEMBLY - 1272150C91, 4 ID X 16 INCH STROKE (08) - HYDRAULICS

1272150C91

CYLINDER

4 (102) ID x 16 inch (406 mm) stroke

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

1282336C1

HEAD

cylinder

1шт.

3

1263346C1

ROD ASSY.

piston

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

145240C1

CLEVIS,1 -1/2" - 12

rod

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert, nylon

1шт.

7

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

8

149930C2

PISTON

cylinder

1шт.

9

1282337C1

GLAND

GLAND cylinder

1шт.

10

145251C1

THREADED ROD,5/8" - 11 x 539mm

BOLT tie, cylinder retaining

4шт.

11

425-1010

NUT,5/8"-11, G5

4шт.

12

214389

PLUG,3/4" - 16 ORB

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

part of seal kit 79979C3

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER piston rod, part of seal kit 79979C3

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL piston rod, part of seal kit 79979C3

1шт.

16

NSS

NOT SOLD SEPARAT

RING backup, end cap and gland O-ring, part of seal kit 79979C3

2шт.

17

NSS

NOT SOLD SEPARAT

O-RING end cap and gland, part of seal kit 79979C3

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL piston rod, part of seal kit 79979C3

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING piston, part of seal kit 79979C3

1шт.

79979C3

SEAL KIT

includes Refs. 13 thru 19

1шт.
