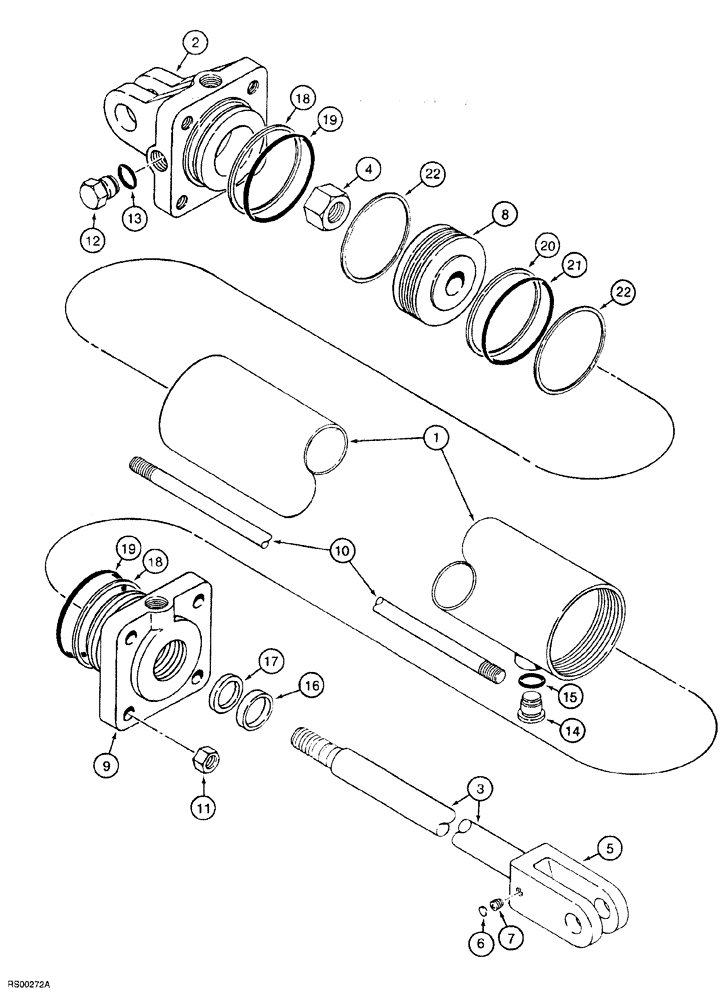

Запчасти Case IH 5700 (8-048) - CYLINDER ASSEMBLY - 1272485C92, 4 ID X 8 INCH STROKE (08) - HYDRAULICS

1272485C92

CYLINDER ASSY.

4 (102) ID x 8 inch (203 mm) stroke

1-2шт.

1

1978387C1

HYD TUBE,4" ID, 10.167" Length

cylinder, cylinder

1шт.

2

1272919C1

CYLINDER HEAD

CAP end

1шт.

3

1267056C1

ROD

piston

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

1267057C1

CLEVIS,3/8" - 16

rod end

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert, nylon

1шт.

7

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

8

92521C1

PISTON

cylinder

1шт.

9

1272920C1

HEAD

GLAND cylinder

1шт.

10

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT cylinder tie

4шт.

11

425-1010

NUT,5/8"-11, G5

4шт.

12

214389

PLUG,3/4" - 16 ORB

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

part of seal kit 80117C2

1шт.

14

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

part of seal kit 80117C2

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER piston rod, part of seal kit 80117C2

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL piston rod, part of seal kit 80117C2

1шт.

18

NSS

NOT SOLD SEPARAT

RING backup, end cap and gland O-ring, part of seal kit 80117C2

2шт.

19

NSS

NOT SOLD SEPARAT

O-RING end cap and gland, part of seal kit 80117C2

2шт.

20

NSS

NOT SOLD SEPARAT

SEAL piston, part of seal kit 80117C2

1шт.

21

NSS

NOT SOLD SEPARAT

O-RINGpiston, part of seal kit 80117C2

1шт.

22

NSS

NOT SOLD SEPARAT

RING wear, piston, part of seal kit 80117C2

2шт.

80117C2

SEAL KIT

seal, includes Refs. 13 and 15 thru 22

1шт.
