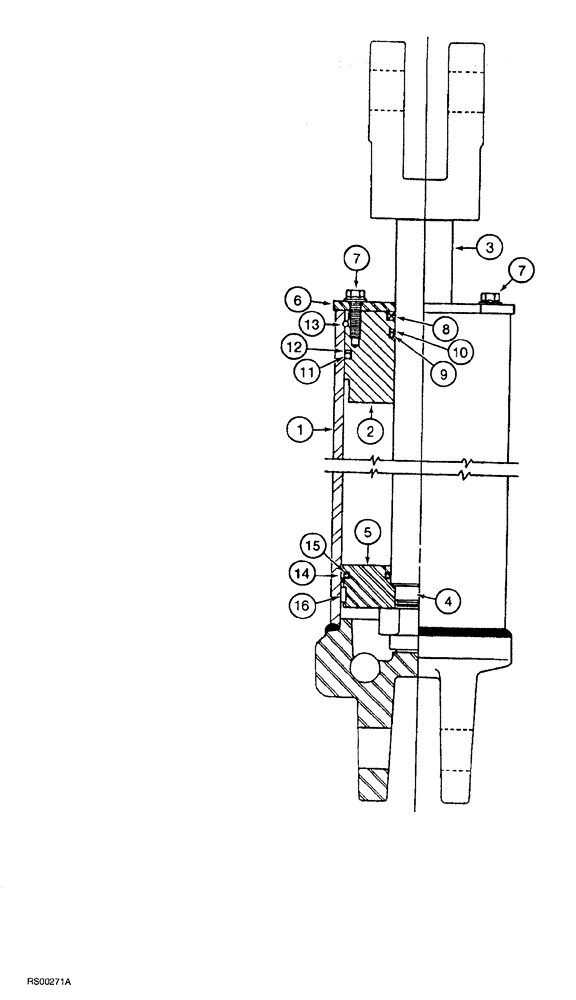

Запчасти Case IH 5700 (8-046) - CYLINDER ASSEMBLY - 8113528C91, 3-3/4 ID X 8 INCH STROKE (08) - HYDRAULICS

813528C91

CYLINDER

ASSEMBLY, 3-3/4 (95) ID x 8 inch (203 mm) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

812297C1

END

GLAND cylinder

1шт.

3

812121C1

ROD

piston

1шт.

4

131-1254

LOCK NUT,1 1/8"-12, GC

1шт.

5

812299C1

PISTON

SPARE PART cylinder

1шт.

6

812298C1

PLATE

gland retaining

1шт.

7

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

BOLT hex serrated flange, 1/4 NC x 3/4 inch

2шт.

8

NSS

NOT SOLD SEPARAT

WIPER piston rod, part of seal kit 812300C91

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING gland and piston, inner, part of seal kit 812300C91

2шт.

10

NSS

NOT SOLD SEPARAT

RING backup, gland O-ring, inner, part of seal kit 812300C91

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING gland, outer, part of seal kit 812300C91

1шт.

12

NSS

NOT SOLD SEPARAT

RING backup, gland O-ring, outer, part of seal kit 812300C91

1шт.

13

NSS

NOT SOLD SEPARAT

RING retaining, gland, part of seal kit 812300C91

1шт.

14

NSS

NOT SOLD SEPARAT

RING backup, piston O-ring, outer, part of seal kit 812300C91

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING piston, outer, part of seal kit 812300C91

1шт.

16

NSS

NOT SOLD SEPARAT

RING wear, piston, part of seal kit 812300C91

1шт.

812300C91

SEAL KIT

seal, includes Refs. 8 thru 16

1шт.
